Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

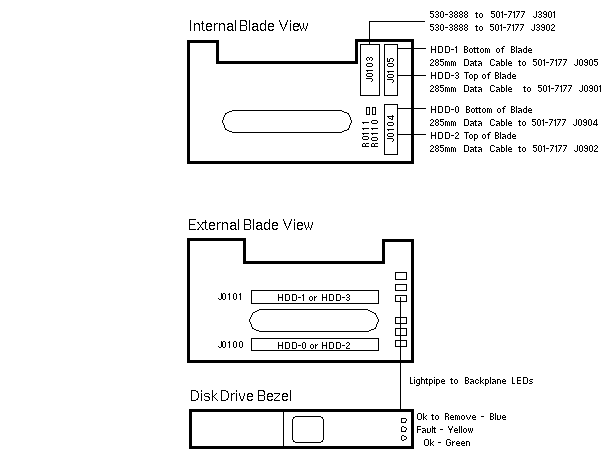

2-Slot SAS/SATA Backplane

<a href="../../Systems/SupportHeaders/SCSI_T6300_2Slot_SAS_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-7853

Sun Blade T6300 Codename: St. Paul

Notes

The 2-Slot Disk Backplane is not available as a FRU.
Cable Kit 541-2491 includes one 530-3655 Data Cable and one 530-3888 Power Cable.
