8-Slot SCSI Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_StrEdg_8Slot_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-4560

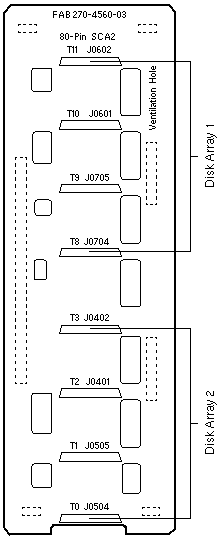

Front View

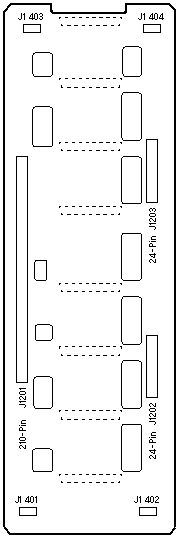

Rear View

StorEdge D1000 Controller Address Settings

SWITCH	DIP	SETTING	DESCRIPTION
SW1	1	Up Down	Array 1 drive addresses 8-11 (default) Array 1 drive addresses 0-3
SW1	2	Up Down	Array 2 drive addresses 8-11 Array 2 drive addresses 0-3 (default)
