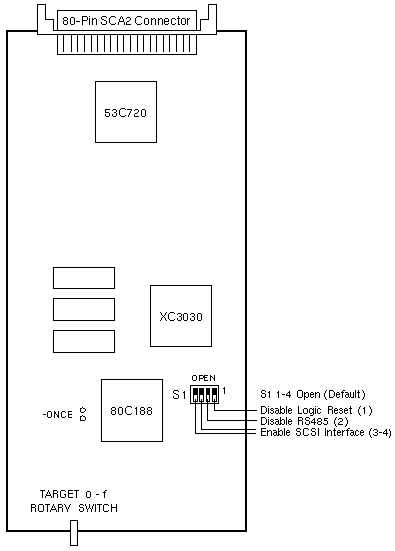

Environmental Sensor

SPARCstorage RSM

Option 6510

370-2195

SPARCstorage RSM Codename: Tabasco

Notes

  1. Set the first board to target 0xf on the Rotary Switch.
  2. Set the second board to target 0xe when two trays are daisy chained.
  3. The maximum number of disk drives is thirteen when two trays and two Environmental boards are daisy chained.

References

  1. SPARCstorage RSM SEN Card Installation, 805-0213.
