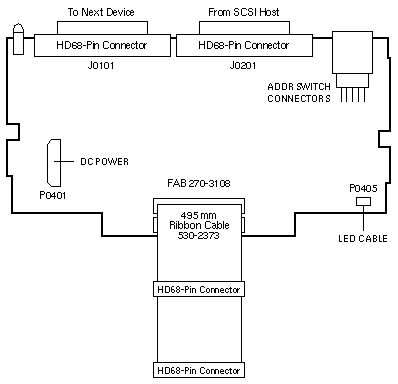

SCSI Adapter

Codename: Togo Tall

SPARCstorage FlexiPack / StorEdge FlexiPack

501-4327
Wide SCSI

Notes

1. The SCSI bus length on the SCSI Adapter is approximately 170 mm.
2. The ribbon cable is soldered to the printed circuit board.
3. Adapter 501-4327 supports two Wide SCSI devices.
4. Narrow 50-Pin devices require HD68-Pin to 50-Pin Adapter 370-2819.
5. The SPARCstorage FlexiPack does not require external termination.
6. The Upper LED indicates termination of SCSI Data Bits D15 - D8.
7. The Lower LED indicates termination of SCSI Data Bits D7 - D0.

References

1. SPARCstorage FlexiPack Installation Manual, 802-7737.

Notes

1. The SCSI bus length on the SCSI Adapter is approximately 170 mm.
2. The ribbon cable is soldered to the printed circuit board.
3. Adapter 501-4356 supports one Narrow SCSI device.
4. The SPARCstorage FlexiPack does not require external termination.
5. The Upper LED indicates termination of SCSI Data Bits D15 - D8.
6. The Lower LED indicates termination of SCSI Data Bits D7 - D0.

References

1. SPARCstorage FlexiPack Installation Manual, 802-7737.

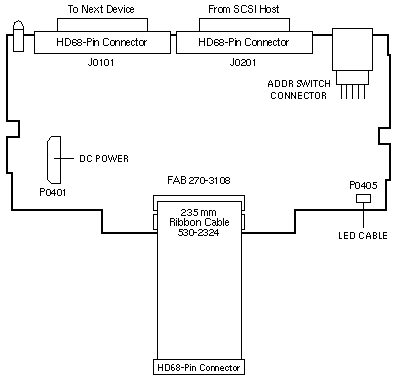

Notes

1. The SCSI bus length on the SCSI Adapter is approx. 170 mm.
2. The ribbon cable is soldered to the printed circuit board.
3. Adapter 501-4357 supports one Wide SCSI device.
4. The SPARCstorage FlexiPack does not require external termination.
5. The Upper LED indicates termination of SCSI Data Bits D15 - D8.
6. The Lower LED indicates termination of SCSI Data Bits D7 - D0.

References

1. SPARCstorage FlexiPack Installation Manual, 802-7737.
