4-Slot Disk Backplane
| 7047731 |
7058660 |
|
4-Slot Backplane |
Drive Cage Assembly
Backplane 7047731 |
| 7073701 |
7074234 |
|
4-Slot Backplane |
Drive Cage Assembly
Backplane 7073701 |

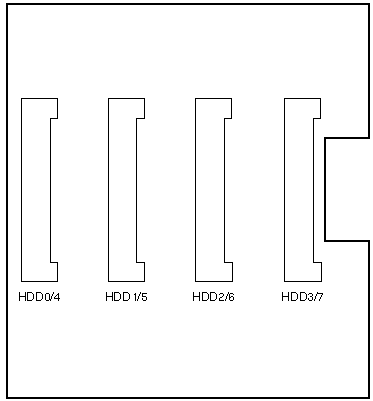

| Front View |
|
Notes
- Drive Cage Assy 7058660 requires Base-IO Board 7058671.
- Drive Cage Assy 7074234 requires Base-IO Board 7074101.
- A single I/O Column / DCU must have the same Drive Cages and Base-I/O Boards
- ECO E0016627 phased 7074234 into the M5-32 production build.
References
 SPARC M5-32 Server Documentation.
- SPARC M6-32 Server Documentation.
|
