8-Slot Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_SFX4170_M2_8Slot_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

511-1548

FAB 271-1548

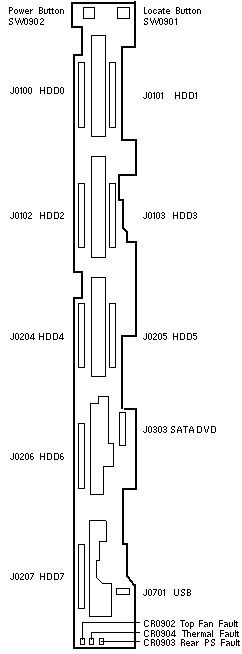

Front Side

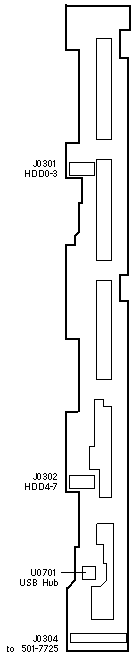

Rear Side

Sun Fire X4170 Codename: Lynx+ (Thelma)
Oracle Exadata X2-2 Codename: EX2-2 (Plus)
Sun ZFS Storage 7320 Codename: Amber Road (Maguro+)

References

Sun Fire X4170 M2 Server Documentation.
