4-Slot Disk Backplane

541-3303
CA20399-B14X

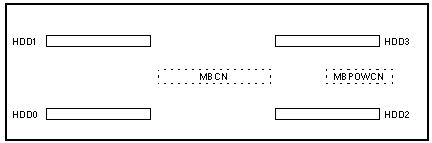

Front View

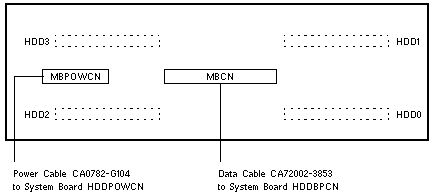

Rear View

SPARC Enterprise M3000 Codename: Ikkaku

Notes

  1. The 32-Pin Data Cable does not have a Sun part number.
  2. The 4-Pin Power Cable does not have a Sun part number.
  3. The Disk Backplane includes a mounting bracket with captive fasteners.

References

  1. SPARC Enterprise M3000 Server Documentation.
  2. Refer to M3000 Hardware Documentation for Product Notes for different XCP versions.
