SCSI/Ethernet (SBE/S)
| Other supported platforms: |
| /Desktops/Workstations |
SPARCstation 5, 10, 20 |
| Servers |
SPARCcenter 2000
SPARCserver 1000 |
Option 1054

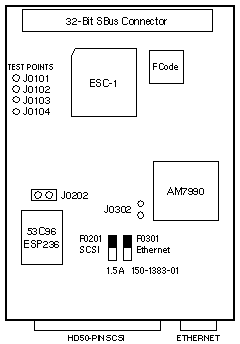

Jumper Settings
| JUMPER |
SETTING |
DESCRIPTION |
| J0202 |
In |
Enable SCSI clock |
| J0302 |
In |
Enable 10BASE5 |
| J0302 |
Out |
Enable 10BASE-T |
Power
- 1.9 Amps @ +5Vdc
- 9.5 Watts not including MAU +12Vdc power requirements
Notes
- Use Adapter Cable 530-1812 for 10BASE5 Ethernet.
- Use Adapter Cable 530-1813 for 10BASE-T Ethernet.
- The SBE/S does not provide Link Test. Disable Link Test on the Hub.
References
 SBE/S SBus User's Guide, 800-6475.
|
