SAS Cable Board

501-7245	F501-7245
Cable Board	Assembly/FRU Board 501-7245 Bracket 341-1633

Notes

1. The Disk Cable Board FRU includes Mounting Bracket 341-1633.

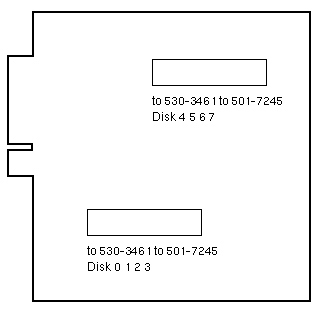

2. The Disk Cable Board connects to the SAS HBA and to the SAS Backplane.
3. To replace SAS Cable 530-3461, order Cable Kit 560-2849.

References

1. Sun Fire V445 Server Documentation.
2. Sun Fire V445 Server Supplemental Product Notes, 819-7846.

Notes

1. The SAS Controller FRU includes Mounting Bracket 341-1633.

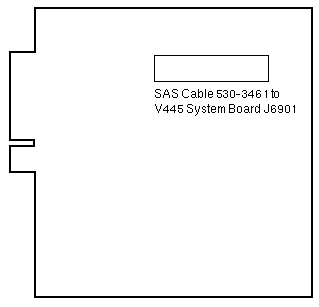

2. The SAS Controller connects to Motherboard J6901 and to the SAS Backplane.
3. V445 systems with 501-7244 were released in February 2007. (WO_34758)
4. Disk drives installed with 501-7244 have a PCI Express based device path.
5. To replace SAS Cable 530-3461, order Cable Kit 560-2849.

References

1. Sun Fire V445 Server Documentation.
2. Sun Fire V445 Server Supplemental Product Notes, 819-7846.
