8-Slot Backplane

7026182	7056232
8-Slot Backplane	8-Slot Backplane

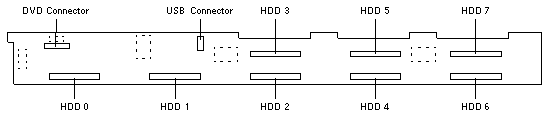

Front View

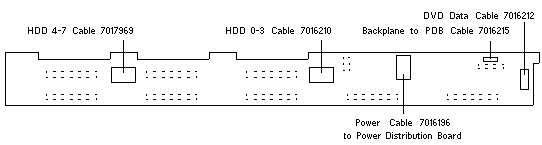

Rear View

Netra SPARC T4-2 Codename: Lisbon

Notes

1. The Backplane includes cables 7016196, 7016210, 7016212, 7016215, and 7017969.
2. The LED Board includes cable 7016206.
3. The Disk Backplane is the most difficult part to service in the Netra SPARC T4-2.
   It requires removal and replacement of PCI Express Cards, XAUI Cards, Memory
   Risers, Disk Drives, DVD/USB, Front Fans, Rear Fan, Power Supplies, System
   Board, PDB to System Board Flex Cable, Backplane to System Board DVD Cable,
   SAS 0-3 Cable, SAS 4-7 Cable, PDB to Backplane Power Cable, PDB to Backplane
   Signal Cable, PDB to LED Board Cable, and the Power Distribution Board.

References

1. Netra SPARC T4-2 Server Documentation
