24-Slot SAS/SATA Disk Backplane

No Part Number 540-7673
Centerplane
FAB P/N DAOJS1TBGC2		 Chassis Assembly/FRU

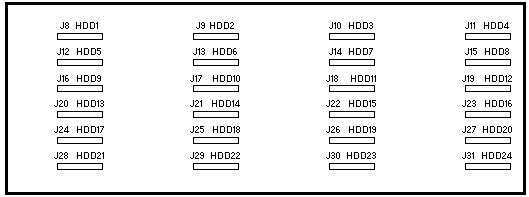

Front View - Backplane Silkscreen

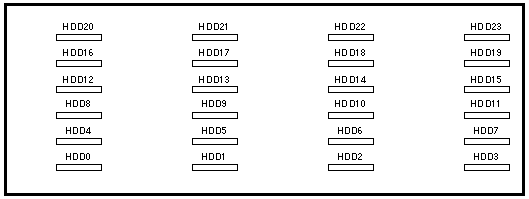

Front View - Chassis Silkscreen

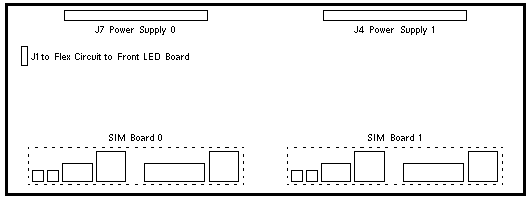

Rear View

Storage J4400 Codename: Riverwalk

Notes

  1. The Centerplane is not available as a FRU.
  2. The Chassis includes the Centerplane, Front LED Board, Front LED Flex Circuit,
    Left End Cap 330-4750, and Right End Cap 330-4751.

References

  1. Sun Storage J4400 Array Documentation.
