12-Slot SAS/SATA Disk Backplane

No Part Number 540-7660
Centerplane
FAB P/N DAORF2TBGC9		 Chassis Assembly/FRU

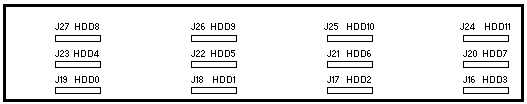

Front View

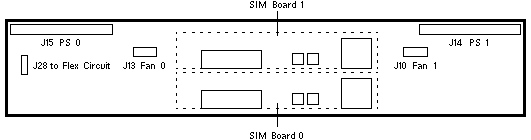

Rear View

Storage J4200 Codename: Alamo

Notes

  1. The Centerplane is not available as a FRU.
  2. The Chassis includes the Centerplane, two Fan Boards, two Fan Board Cables,
    Front LED Board, Front LED Flex Circuit, Left End Cap 371-4054, and Right End
    Cap 371-4055.

References

  1. Sun Storage J4200 Array Documentation.
