Ultra-160 SCSI Controller

375-3059 540-5016

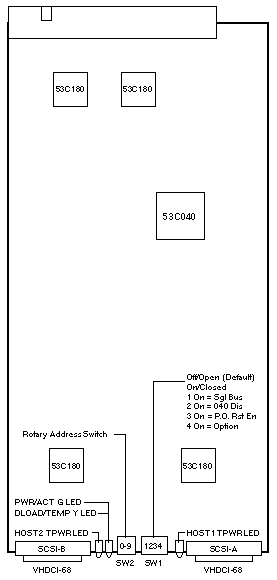

Controller Board FRU Assembly

StorEdge D2 Codename: Carmel

Notes

  1. The board is installed solder side up in the StorEdge D2.
  2. Set SW1-1 On (towards the chassis top) to enable Single Bus Mode.
  3. Set SW1-1 Off (towards the chassis bottom) to enable Split Bus Mode.

References

  1. Sun StorageTek D2 Array Documentation.
