12-Slot SCSI Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_D2_12Slot_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

375-3049 370-4617

Backplane Chassis FRU Assembly

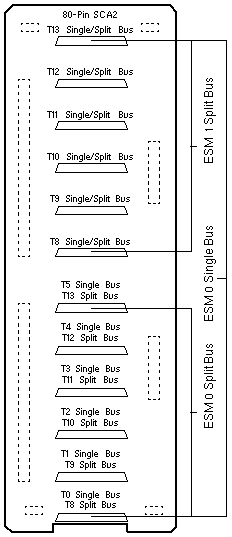

Front View

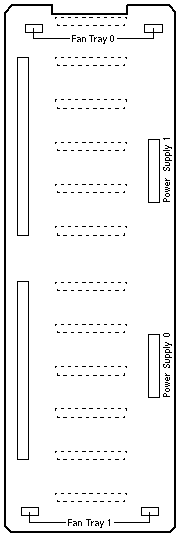

Rear View

Notes

ESM 0 controls all drives (T0 - T13) in Single Bus Mode.
ESM 0 controls drives on the left (T8 - T13) in Split Bus Mode.
ESM 1 controls drives on the right (T8 - T13) in Split Bus Mode.
