8-Port 6Gbps SAS-2 HBA

Codename: Thebe-EXT

Option SG-XPCIESAS-GEN2-Z
Option 7105394

375-3609	7056272
x8 PCI Express	x8 PCI Express

Additional Information & Views

Notes

1. Option SG-XPCIESAS-GEN2-Z does not include cables or documentation.
2. Booting from the SG-XPCIESAS-GEN2-Z is not supported.

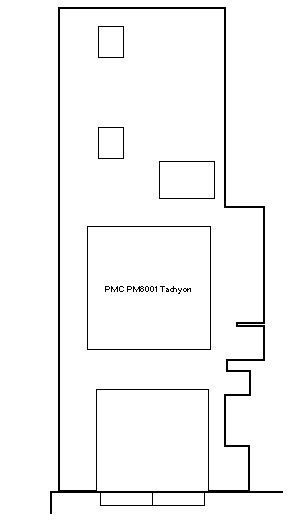

3. SAS Port numbering is unknown, and intentionally omitted from the illustration.
4. The 8-Port SAS HBA was released in September 2009. (WO_40903)
5. Fishworks AK 2011.1.4.1 or greater is required to support the 7056272.
6. PCI Identifiers are Vendor ID 0x11f8, Subsystem ID 0x2200, and Device ID 0x8001.
7. Vital Product Data VPD=PN is 375-3609 or 7056272.

References

1. Sun Storage SAS PCIe 6 Gbps 8 Port HBA Installation Guide, 820-6550.
2. Engineering Specification, 950-5857.
