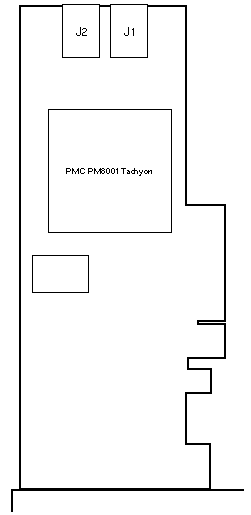

8-Port 6Gbps SAS-2 HBA

Codename: Thebe-INT

Option SG-XPCIESASG2INT-Z

375-3665	7056275
x8 PCI Express	x8 PCI Express

Notes

1. Option SG-XPCIESASG2INT-Z does not include cables or documentation.
2. Booting from the SG-XPCIESASG2INT-Z is not supported.
3. The 8-Port SAS HBA was released in August 2010. (WO_43586)
4. Fishworks AK 2011.1.4.1 or greater is required to support the 7056275.
5. PCI Identifiers are Vendor ID 0x11f8, Subsystem ID 0x2202, and Device ID 0x8001.
6. Vital Product Data VPD=PN is 375-3665 or 7056275.

References

1. Sun Engineering Specification, 950-5857-01 Rev 52.
