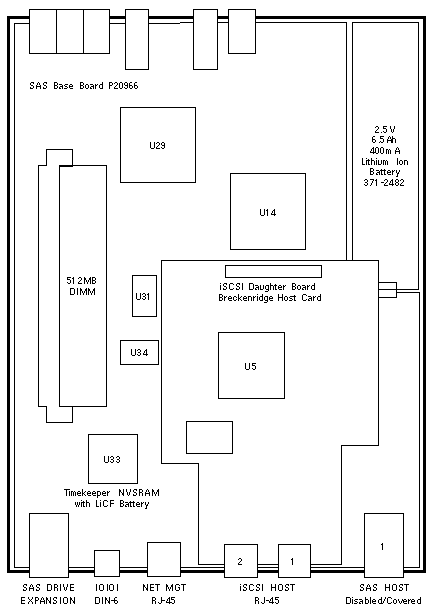

iSCSI RAID Controller Tray
Option XTA-2510-CTRL-512M
| 540-7306 |
375-3518 |
Battery 371-2482
iSCSI RAID 375-3518 |
SAS Base Board
with iSCSI Daughter Board
w/o Battery 371-2482 |
Notes
- SAS Base Board P20966 is used in FCAL, iSCSI, and SAS configurations.
- iSCSI RAID Controller Tray 375-3518 includes SAS Base Board P20966,
iSCSI Daughter Board, and sheetmetal tray.
- The SAS Base Board does not have a separate Sun part number.
- The iSCSI Daughter Board does not have a separate Sun part number.
- Single controller configurations with firmware 07.35.10.10 requires
CAM >=6.2.
- Firmware 07.35.10.10 is on 375-3518-03.
(Reference WO_40339 and GSAP 4547)
References
 Sun StorageTek 2500 Arrays Documentation.

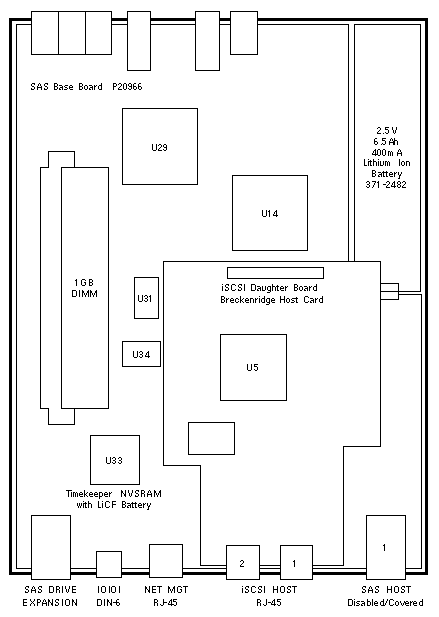

iSCSI RAID Controller Tray
Option XTA-2510-CTRL-1GB
| 540-7736 |
375-3594 |
371-4592 |
Battery 371-2482
iSCSI RAID 375-3594 |
SAS Base Board
with iSCSI Daughter Board
w/o Battery 371-2482 |
1GB DIMM
XTA-2500-1GBMEM |
Additional Information & Views
Notes
- SAS Base Board P20966 is used in FCAL, iSCSI, and SAS configurations.
- iSCSI RAID Controller Tray 375-3594 includes SAS Base Board P20966,
iSCSI Daughter Board, and sheetmetal tray.
- The SAS Base Board does not have a separate Sun part number.
- The iSCSI Daughter Board does not have a separate Sun part number.
References
- Sun StorageTek 2500 Arrays Documentation.
|
