35-70GB 1/2-Inch DLT Tape Drive

Tape Libraries:

StorEdge L280

370-3423
Quantum DLT7000 Differential SCSI

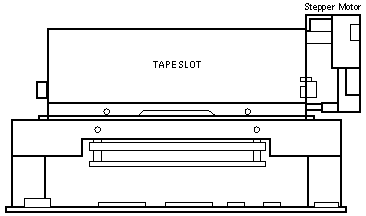

Front View

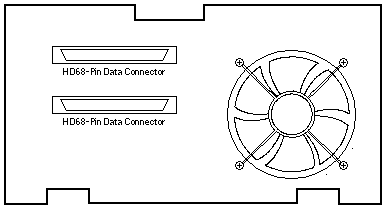

Rear View

Notes

1. The minimum operating system is Solaris 2.5.
2. The 370-3423 includes address and data cables, fan, mounting bracket, stepper motor, and stepper motor circuit board.
3. To remove the tape drive, slide the drive 2.5" (65 mm) out of the chassis. Disconnect the DC Power, Fan Power, Stepper Motor, and SCSI Address cables, and remove the drive from the chassis.

References

1. StorEdge L280 Users Guide.
