24X CD-ROM/Floppy /
8X DVD-ROM/Floppy

Options 5130 / 5131

370-6042 370-6043
A53306-004
Samsung SN-124 CD
Samsung SFD-321S Floppy
ATAPI/IDE CD Interface		 Unknown
Unknown Vendor DVD
Samsung SFD-321S Floppy
ATAPI/IDE DVD Interface

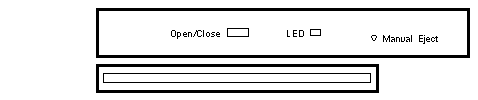

Front View

Notes

  1. Alternate sources for the CD, DVD, and Floppy may be used without notice.

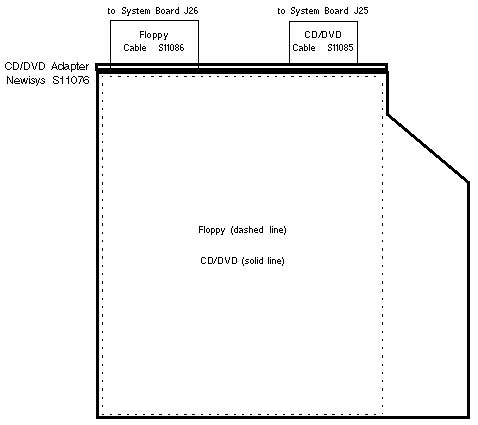

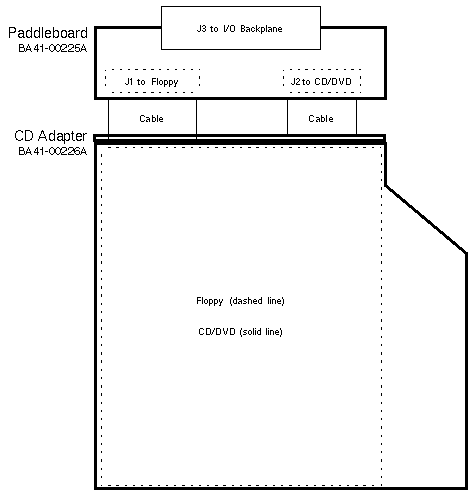

  2. The FRU includes the Adapter, Cables, CD/DVD, Floppy, Paddleboard, and Tray.

References

  1. Sun Fire V60x Server Documentation.
  2. Sun Fire V65x Server Documentation.


24X CD-ROM/Floppy /
8X DVD-ROM/Floppy

Options 9259 / 9260

370-6637 370-6656
Newisys S01463
Teac CD-224E CD
Teac FD-05HG Floppy
ATAPI/IDE CD Interface		 Newisys S01464
Unknown DVD
Teac FD-05HG Floppy
ATAPI/IDE DVD Interface

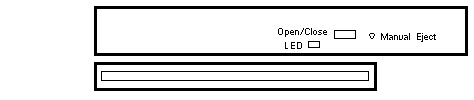

Front View

Note

  1. Alternate sources for the CD, DVD, and Floppy may be used without notice.

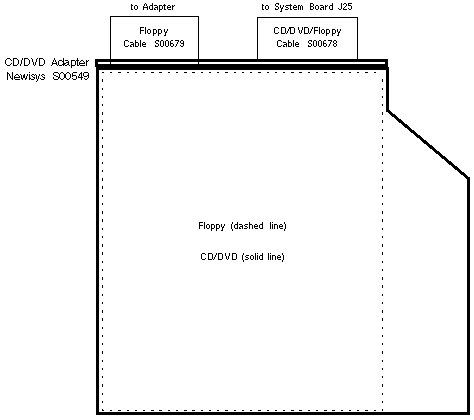

  2. The FRU includes the Adapter, CD/DVD, Floppy, and Tray.
  3. The cables do not have separate Sun part numbers. Order Cable Kit 370-6676.

References

  1. Sun Fire V20z Server Documentation.
  2. Sun Fire V40z Server Documentation.


24X CD-ROM/Floppy /
8X DVD-ROM/Floppy

Options 9289A / 9289A-Z

No Part # 370-6906 371-1461
pre-production build
Newisys S00727
Teac CD-224E CD
Teac FD-05HG Floppy
ATAPI/IDE CD Interface		 Option 9289A
Newisys S01808
Teac DV-28E DVD
Teac FD-05HG Floppy
ATAPI/IDE DVD Interface		 Option 9289A-Z
Newisys Unknown
Teac DV-28E-C92 DVD
Floppy Unknown
ATAPI/IDE DVD Interface


Front View

Note

  1. Alternate sources for the CD, DVD, and Floppy may be used without notice.
  2. The FRU includes the Adapter, CD/DVD, Floppy, and Tray.
  3. The cables do not have separate Sun part numbers. Order Cable Kit 370-6928.

References

  1. Sun Fire V20z Server Documentation.
  2. Sun Fire V40z Server Documentation.
