48X CD-ROM

Options 5246 / 6178

370-4152	370-4353
Sun Blade 100/150 LiteOn LTN-485S LiteOn LTN-486S ATAPI/IDE Interface Medium Grey Bezel 1 5/8" Height	Ultra 5/10 Option 5246 Goldstar CRD-8483B ATAPI/IDE Interface Light Grey Bezel 1 5/8" Height

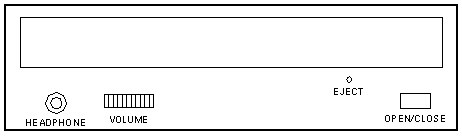

Front View CRD-8483B

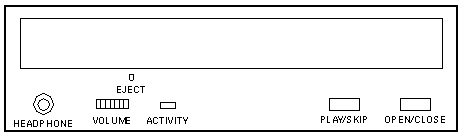

Front View LTN-485S

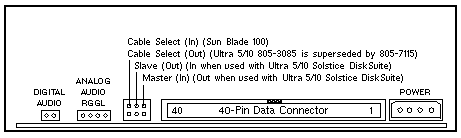

Rear View

The Ultra 5/10 boot cdrom command will not work with the default device alias when the drive is set to slave. Change the OBP device alias to boot from CD-ROM.

CD-ROM Connected to the Primary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@1,0:f

CD-ROM Connected to the Secondary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@3,0:f

References

1. Ultra 5/10 Service Manual, 805-0423.
2. Sun Ultra 5 Workstation Documentation.
3. Sun Ultra 10 Workstation Documentation.
4. CD-ROM and Hard Drive Installation Guide, 805-3085.
5. Sun Blade 100 Workstation Documentation.
