32X CD-ROM

Option 6171

370-3694	370-3694
Goldstar CRD-8322B ATAPI/IDE Interface 1 5/8" Height	Goldstar CRD-8324B ATAPI/IDE Interface 1 5/8" Height

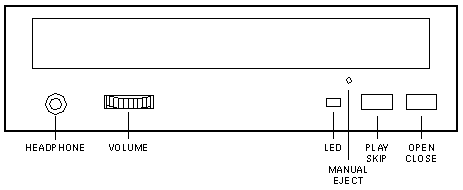

Front View

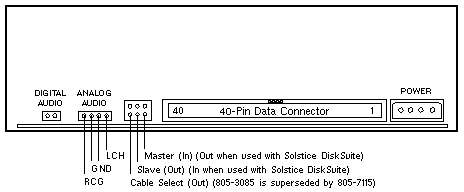

Rear View

The boot cdrom command will not work with the default device alias when the drive is set to slave. Change the OBP device alias to boot from CD-ROM.

CD-ROM Connected to the Primary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@1,0:f

CD-ROM Connected to the Secondary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@3,0:f

References

1. Ultra 5/10 Service Manual, 805-0423.
2. Sun Ultra 5 Workstation Documentation.
3. Sun Ultra 10 Workstation Documentation.
4. CD-ROM and Hard Drive Installation Guide, 805-3085.
