Sun Rack 900-36N

Mounting Kits
Power Distribution Systems & Cables

Go to SR2-2936NA

SR9-2BM036A-IP	SR9-2XBM036A-IP
SR9-2MD036A-IP	SR9-2XMD036A-IP

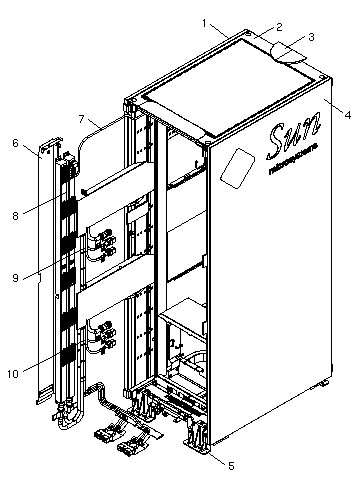

SR-2936NA

Table Legend

[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system NS = Not Shown

CODE	PART #	DESCRIPTION
1 1 1 1 1	594-2527 596-5664 594-2556 596-5652 596-5662	Sun Rack 900-36N, w/o Power Distribution, Option SR9-2XMD036A-IP [S] Sun Rack 900-36N, w/o Power Distribution, Option SR9-2MD036A-IP [S] Sun Rack 900-36N, w/ Power Distribution, Option SR9-2XBM036A-IP [S] Sun Rack 900-36N, w/ Power Distribution, Option SR9-2BM036A-IP [S] Sun Rack 900-36N, w/o Power Distribution, Option SR-2936NA [S]
Rack Options with Power Distribution included the parts in Option 5143A-2. Option 5143A-2 requires AC Power Cord Option 5145, 5146, 5147, or 5148. Power Distribution Options 9245A-2 and 9247A-2 are also available. Options 9245A-2 and 9247A-2 include a non-removable AC Power Cord.
1 1 2 3	540-6692 540-6693 371-1092 [F] 540-5479	Cabinet Assembly w/o Power Distribution Cabinet Assembly w/ Power Distribution Top Panel Assembly/FRU Backlight Assembly
1 4 5 NS NS 6	371-1091 None None None None None	Cabinet Frame NEBS Side Panel Bolt Down Bracket Antitip Bar Heavy Duty Caster Power Strip Mounting Panel
7	180-2067	10A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.0M
8 8	371-0908 [F] 371-2955 [F]	Dual Input, 24 Output AC Power Strip Dual Input, 24 Output AC Power Strip
NS NS	300-1880 [F] 300-2089 [F]	Dual Input, 24 Output AC Power Sequencer Dual Input, 24 Output AC Power Sequencer
9 - -	371-1766 [F] 180-2056 180-2150	Upper Power Cords Upper Inlet Power Cord Upper Outlet Power Cord
10 - -	371-1767 [F] 180-2057 180-2151	Lower Power Cords Lower Inlet Power Cord Lower Outlet Power Cord
NS NS NS NS	180-2082 180-2083 180-2084 180-2085	13A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.0M 13A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.5M 13A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 2.0M 13A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 2.5M
These cords are factory installed in quantities as required.
NS	371-1093	Front Door
NS	371-1094	Rear Door
	816-6387 817-4985	Sun Rack Service Manual Sun Rack 900-36N Installation Guide

Sun Rack 900-36N

Mounting Kits
Power Distribution Systems & Cables

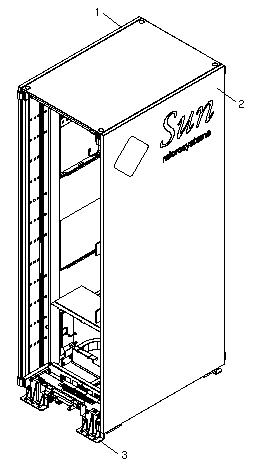

SR2-2936NA

Table Legend

[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system NS = Not Shown

CODE	PART #	DESCRIPTION
1	596-5703	Sun Rack 900-36N, w/o Power Distribution, Option SR2-2936NA [S]
Power Distribution Option 5143A-2 is not available. Power Distribution Options 9245A-2 and 9247A-2 are also available. Options 9245A-2 and 9247A-2 include a non-removable AC Power Cord.
NS NS 1 2 3 NS NS	371-0783 371-0784 371-0782 None None None None	Front Alloy Door Rear Alloy Door Cabinet Frame NEBS Side Panel Bolt Down Bracket Antitip Bar Heavy Duty Caster
NS - - - - - -	560-2810 240-4543 345-1417 345-1418 345-1423 345-1424 345-1425	Ship Kit Key 1/4" × 50 mm #3 Phillips Bit 13 mm / 19 mm Wrench 3 mm Allen Wrench 6 mm Allen Wrench 5 mm Allen Wrench
NS - - -	594-2558 540-6697 540-6698 540-6699	Filler Panel Kit, Option X6826A-2 [S] 1RU Filler Panel 2RU Filler Panel 4RU Filler Panel
	816-6387 817-4985	Sun Rack Service Manual Sun Rack 900-36N Installation Guide

Sun Rack 900 Mounting Kits

PART #	DESCRIPTION
594-2567 340-7595 340-7596 340-7597 340-7606 816-7772	StorEdge A1000/D1000 Mounting Kit, Option X6838A-2 [S] Left Rail Right Rail Tray Adapter Rail A1000/D1000 Rack Mount Installation Manual
594-2568 340-7652 340-7653 340-7654 340-7655 816-7769	StorEdge D240 Mounting Kit, Option X6839A-2 [S] Left Rail Right Rail Adapter Front Mounting Bracket D240 Rack Mount Installation Manual
594-2570 340-7638 340-7639 340-7641 340-7642 340-7643 370-5969 816-7773	Netra t 1400 Mounting Kit, Option X6846A-2 [S] Front Bracket Rear Bracket Nut Plate Bracket Left Adapter Bracket Right Adapter Bracket Rack Slide Netra t 1400 Rack Mount Installation Manual
594-3317 541-1823 530-3096 816-2519	Sun Fire V880/V890 Mounting Kit, Option X9628A-2 Rack Kit IEC 320 Sheet E to IEC 320 C13 Power Cord Sun Fire V880 Server Rackmounting Product Notes

Power Distribution Systems & Cables

PART #	DESCRIPTION
596-5670 180-2067 300-1880 [F] 300-2089 [F] 371-1766 180-2056 180-2150 371-1767 180-2057 180-2151 371-0908 [F] 371-2955 [F] 817-3900	SR900-36N Power Distribution System, Option 5143A-2 [S] 10A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.00M Dual Input, 24 Output AC Power Sequencer Dual Input, 24 Output AC Power Sequencer Upper Power Cords Upper Inlet Power Cord (×2) Upper Outlet Power Cord (×1) Lower Power Cords Lower Inlet Power Cord (×2) Lower Outlet Power Cord (×1) Dual Input, 24 Output AC Power Strip Dual Input, 24 Output AC Power Strip Power Distribution System Installation Guide
Option 5143A-2 requires AC Input Power Cord Option 5145, 5146, 5147, or 5148.
596-5677 180-2067 180-2089 180-2090 180-2091 180-2092 180-2093 180-2094 371-0893 [F] 371-0894 [F]	SR900-36N Power Strip Bundle Option 9232A-2 [S] 10A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.00M (×1) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 1.25M (×3) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 1.50M (×1) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 1.75M (×2) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 2.00M (×2) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 2.25M (×2) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 2.50M (×2) 16A IEC 320 Sheet F 4-Output AC Power Strip (×2) 16A IEC 320 Sheet F 6-Output AC Power Strip (×10)
565-1761 [F] 180-2089 180-2090 180-2091 180-2092 180-2093 180-2094	SR900/SR1000 Left Power Cord Kit/FRU 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.50M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.75M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.00M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.50M
565-1763 [F] 180-2103 180-2104 180-2105 180-2106 180-2107 180-2108	SR900/SR1000 Right Power Cord Kit/FRU 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.50M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.75M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.00M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.50M
596-3500 180-2005 [F] 596-3505 180-2004 596-4261 180-2060 [F] 596-4262 180-2061	AC Power Cord, Option 5145A [S] Power Cord, NEMA L6-20 to IEC 320-C19 (×4) AC Power Cord, Option 5146A [S] Power Cord, Blue 16A IEC 309 to IEC 320-C19 (×4) 1 Watertight AC Power Cord, Option 5147A [S] Power Cord, Blue 20A Watertight IEC 309 to IEC 320-C19 (×4) Watertight AC Power Cord, Option 5148A [S] Power Cord, Blue 16A Watertight IEC 309 to IEC 320-C19 (×4)
594-3829 180-2005 [F] 594-3830 180-2004 594-4237 180-2004 7040702 594-3970 180-2095 7040686 [F] 594-3971 180-2096 594-4236 180-2096 7040688	AC Power Cord Six Pack, Option 5044A-Z Power Cord, NEMA L6-20 to IEC 320-C19 AC Power Cord Six Pack, Option 5045A-Z Power Cord, Blue 16A IEC 309 to IEC 320-C19 2 AC Power Cord Four Pack, Option 5075A-Z/5075A-Z-N Power Cord, Blue 16A IEC 309 to IEC 320-C19 Power Cord, Blue 16A IEC 309 to IEC 320-C19 AC Power Cord Six Pack, Option 5046A-Z 20A IEC 320 C19 to IEC 320 Sheet I, 1.50M 16A IEC 320 C19 to IEC 320 Sheet I, 1.50M 3 AC Power Cord Six Pack, Option 5047A-Z 20A IEC 320 C19 to IEC 320 Sheet I, 2.00M 4 AC Power Cord Four Pack, Option 5077A-Z/5077A-Z-N 20A IEC 320 C19 to IEC 320 Sheet I, 2.00M 16A IEC 320 C19 to IEC 320 Sheet I, 2.00M
F180-2082 180-2082 F180-2085 180-2085	SR900/SR1000 Power Cord, Option X9237-1-A 13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1.00M SR900/SR1000 Power Cord, Option X9238-1-A 13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2.50M

1 Power Cord 180-2004 was replaced by 7040702. Option 5146A was not updated. 2 Power Cord 180-2004 was replaced by 7040702. Option 5045A-Z was not updated. 3 Power Cord 180-2095 was replaced by 7040686. Option 5046A-Z was not updated. 4 Power Cord 180-2096 was replaced by 7040688. Option 5047A-Z was not updated.
