Sun Rack 1000-38

Mounting Kits
Power Distribution Systems & Cables

Go to:
SR2-21038-X32TPL
SR2-21038-32TPL
SR2-21038-X60TPL
SR2-21038-60TPL
SR2-21038A

SRK-2BC038A-IP	SRK-2XBC038A-IP
SRK-2RS038A-IP	SRK-2XRS038A-IP

SR-21038A

Table Legend

[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system NS = Not Shown

CODE	PART #	DESCRIPTION
1 1 1 1 1	594-2471 596-5655 594-2535 596-5654 596-5663	Sun Rack 1000-38, w/o Power Distribution, Option SRK-2XBC038A-IP [S] Sun Rack 1000-38, w/o Power Distribution, Option SRK-2BC038A-IP [S] Sun Rack 1000-38, w/ Power Distribution, Option SRK-2XRS038A-IP [S] Sun Rack 1000-38, w/ Power Distribution, Option SRK-2RS038A-IP [S] Sun Rack 1000-38, w/o Power Distribution, Option SR-21038A [S]
Rack Options with Power Distribution included the parts in Option 5142A-2. Option 5142A-2 requires AC Power Cord Option 5145, 5146, 5147, or 5148. Power Distribution Options 9241-2, 9243-2, 9245-2, and 9247-2 are also available. Options 9241A-2, 9243A-2, 9245A-2, and 9247A-2 include a non-removable AC Power Cord.

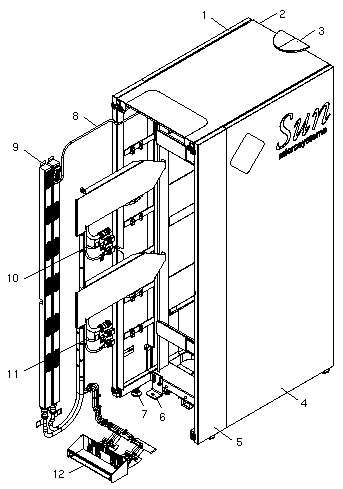

1 1 2 3	540-6663 540-6695 371-1089 [F] 540-5479	Cabinet Assembly Cabinet Assembly w/ Power Distribution Top Panel Assembly/FRU Backlight Assembly

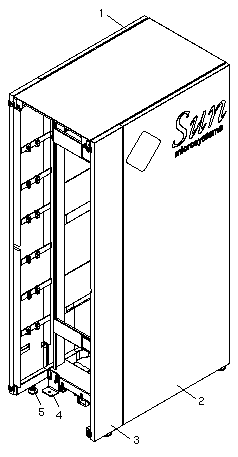

1 4 5 6 7 NS NS	371-0981 None None None None None None	Cabinet Frame Side Panel, 38U × 800 mm Extension Side Panel, 38U × 200 mm Shipping Bolt Down Bracket Leveler Foot Antitip Bar Heavy Duty Caster
8	180-2067	10A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1M
9 9	371-0908 [F] 371-2955 [F]	Dual Input, 24 Output AC Power Strip Dual Input, 24 Output AC Power Strip
NS NS	300-1880 [F] 300-2089 [F]	Dual Input, 24 Output AC Power Sequencer Dual Input, 24 Output AC Power Sequencer
10 - -	371-1766 [F] 180-2056 180-2150	Upper Power Cords Upper Inlet Power Cord Upper Outlet Power Cord
11 - -	371-1767 [F] 180-2057 180-2151	Lower Power Cords Lower Inlet Power Cord Lower Outlet Power Cord
12	371-1088	AC Inlet Power Panel
NS NS	180-2082 180-2085	13A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.0M 13A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 2.5M
These cords are factory installed in quantities as required.
NS - -	371-0979 330-4238 540-6161	Front Door Assembly Logo Insert Logo Holder Assembly
	816-6387 817-4985	Sun Rack Service Manual Sun Rack 900-36N Installation Guide

Sun Rack 1000-38

Mounting Kits
Power Distribution Systems & Cables

SR2-21038-X32TPL	SR2-21038-32TPL
SR2-21038-X60TPL	SR2-21038-60TPL

SR2-21038A

Table Legend

[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system NS = Not Shown

CODE	PART #	DESCRIPTION
1 1 1 1 1 1 1	594-2565 594-2624 596-5699 594-2569 596-5704 596-5773 596-5698	Sun Rack 1000-38, w/ 32A Power Distribution, Option SR2-21038-X32TPL [S] Sun Rack 1000-38, w/ 16/20A Power Distribution, Option SR2-21038-XPDS [S] Sun Rack 1000-38, w/ 32A Power Distribution, Option SR2-21038-32TPL Sun Rack 1000-38, w/ 60A Power Distribution, Option SR2-21038-X60TPL [S] Sun Rack 1000-38, w/ 60A Power Distribution, Option SR2-21038-60TPL Sun Rack 1000-38, w/ 16/20A Power Distribution, Option SR2-21038-PDS [S] Sun Rack 1000-38, w/o Power Distribution, Option SR2-21038A [S]
32A 3-Phase AC Power Distribution is for International use. Rack Options with Power Distribution include the parts in Option 5142A-2. Option 5142A-2 requires AC Power Cord Option 5145, 5146, 5147, or 5148. 60A 3-Phase AC Power Distribution is for Japan, Taiwan, and North America. Power Distribution Options 9241A-2, 9243A-2, 9245A-2, and 9247A-2 are also available. Options 9241A-2, 9243A-2, 9245A-2, and 9247A-2 include a non-removable AC Power Cord.
NS NS 1 1 2 3 4 5 NS NS	371-0295 [F] 371-1339 [F] 371-0785 371-1133 None None None None None None	Front Alloy Door Rear Alloy Door Cabinet Frame, 32A and 60A Options Cabinet Frame, SR2-21038A Side Panel, 38U × 800 mm Extension Side Panel, 38U × 200 mm Shipping Bolt Down Bracket Leveler Foot Antitip Bar Heavy Duty Caster
NS - - - - - -	560-2809 345-1416 345-1417 345-1418 345-1423 345-1424 345-1425	Ship Kit T-Wrench 1/4" × 50 mm #3 Phillips Bit 13 mm / 19 mm Wrench 3 mm Allen Wrench 6 mm Allen Wrench 5 mm Allen Wrench
NS NS NS NS	594-2558 540-6697 540-6698 540-6699	Filler Panel Kit, Option X6826A-2 [S] 1RU Filler Panel 2RU Filler Panel 4RU Filler Panel
NS NS NS NS NS	180-2082 180-2083 180-2084 180-2085 180-2067	13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1.00M * 13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1.50M * 13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2.00M * 13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2.50M * 10A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
* These cords are factory installed in quantities as required.
NS NS	300-1880 [F] 300-2089 [F]	Dual Input, 24 Output AC Power Sequencer Dual Input, 24 Output AC Power Sequencer
NS	300-0908	Dual Input, 24 Output AC Power Strip
NS - -	371-1766 180-2056 180-2150	Upper Power Cords Upper Inlet Power Cord Upper Outlet Power Cord
NS - -	371-1767 180-2057 180-2151	Lower Power Cords Lower Inlet Power Cord Lower Outlet Power Cord
	816-6387 817-4985	Sun Rack Service Manual Sun Rack 900-36N Installation Guide

Sun Rack 1000 Mounting Kits

PART #	DESCRIPTION
594-2567 340-7595 340-7596 340-7597 340-7606 816-7772	StorEdge A1000/D1000 Mounting Kit, Option X6838A-2 [S] Left Rail Right Rail Tray Adapter Rail A1000/D1000 Rack Mount Installation Manual
594-2568 340-7652 340-7653 340-7654 340-7655 816-7769	StorEdge D240 Mounting Kit, Option X6839A-2 [S] Left Rail Right Rail Adapter Front Mounting Bracket D240 Rack Mount Installation Manual
594-2570 340-7638 340-7639 340-7641 340-7642 340-7643 370-5969 816-7773	Netra t 1400 Mounting Kit, Option X6846A-2 [S] Front Bracket Rear Bracket Nut Plate Bracket Left Adapter Bracket Right Adapter Bracket Rack Slide Netra t 1400 Rack Mount Installation Manual
594-3317 541-1823 530-3096 816-2519	Sun Fire V880/V890 Mounting Kit, Option X9628A-2 Rack Kit IEC 320 Sheet E to IEC 320 C13 Power Cord Sun Fire V880 Server Rackmounting Product Notes

Power Distribution Systems & Cables

PART #	DESCRIPTION
596-5645 180-2067 [F] 300-1880 [F] 300-2089 [F] 341-0211 371-1088 371-1766 [F] 180-2056 180-2150 371-1767 [F] 180-2057 180-2151 371-0908 [F] 371-2955 [F] 817-3900	Power Distribution System, Option 5142A-2 [S] 10A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.00M Dual Input, 24 Output AC Power Sequencer Dual Input, 24 Output AC Power Sequencer Cable Management Tray AC Inlet Power Panel Upper Power Cords Upper Inlet Power Cord Upper Outlet Power Cord Lower Power Cords Lower Inlet Power Cord Lower Outlet Power Cord Dual Input, 24 Output AC Power Strip Dual Input, 24 Output AC Power Strip Power Distribution System Installation Guide
Option 5142A-2 requires AC Input Power Cord Option 5145, 5146, 5147, or 5148.
596-5678 180-2067 180-2089 180-2090 180-2091 180-2092 180-2093 180-2094 371-0894 [F]	SR1000-38 Power Strip Bundle, Option 9233A-2 [S] 10A 90° IEC 320 Sheet E to IEC 320 C13 Power Cord, 1.00M (×1) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 1.25M (×3) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 1.50M (×1) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 1.75M (×2) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 2.00M (×2) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 2.25M (×2) 20A 120° IEC 320 C19 to IEC 320 Sheet I Power Cord, 2.50M (×2) 16A IEC 320 Sheet F 6-Output AC Power Strip (×12)
565-1761 [F] 180-2089 180-2090 180-2091 180-2092 180-2093 180-2094	SR900/SR1000 Left Power Cord Kit/FRU 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.50M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.75M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.00M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.50M
565-1763 [F] 180-2103 180-2104 180-2105 180-2106 180-2107 180-2108	SR900/SR1000 Right Power Cord Kit/FRU 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.50M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 1.75M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.00M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.25M 20A 120° IEC 320 C19 to IEC 320 Sheet I Pwr Cord, 2.50M
596-3500 180-2005 [F] 596-3505 180-2004 596-4261 180-2060 [F] 596-4262 180-2061	AC Power Cord, Option 5145A [S] Power Cord, NEMA L6-20 to IEC 320-C19 AC Power Cord, Option 5146A [S] Power Cord, Blue 16A IEC 309 to IEC 320-C19 1 Watertight AC Power Cord, Option 5147A [S] Power Cord, Blue 20A Watertight IEC 309 to IEC 320-C19 Watertight AC Power Cord, Option 5148A [S] Power Cord, Blue 16A Watertight IEC 309 to IEC 320-C19
594-3829 180-2005 [F] 594-3830 180-2004 594-4237 180-2004 7040702 594-3970 180-2095 7040686 [F] 594-3971 180-2096 594-4236 180-2096 7040688	AC Power Cord Six Pack, Option 5044A-Z Power Cord, NEMA L6-20 to IEC 320-C19 AC Power Cord Six Pack, Option 5045A-Z Power Cord, Blue 16A IEC 309 to IEC 320-C19 2 AC Power Cord Four Pack, Option 5075A-Z/5075A-Z-N Power Cord, Blue 16A IEC 309 to IEC 320-C19 Power Cord, Blue 16A IEC 309 to IEC 320-C19 AC Power Cord Six Pack, Option 5046A-Z 20A IEC 320 C19 to IEC 320 Sheet I, 1.50M 16A IEC 320 C19 to IEC 320 Sheet I, 1.50M 3 AC Power Cord Six Pack, Option 5047A-Z 20A IEC 320 C19 to IEC 320 Sheet I, 2.00M 4 AC Power Cord Four Pack, Option 5077A-Z/5077A-Z-N 20A IEC 320 C19 to IEC 320 Sheet I, 2.00M 16A IEC 320 C19 to IEC 320 Sheet I, 2.00M
F180-2082 180-2082 F180-2085 180-2085	SR900/SR1000 Power Cord, Option X9237-1-A 13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1.00M SR900/SR1000 Power Cord, Option X9238-1-A 13A 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2.50M

1 Power Cord 180-2004 was replaced by 7040702. Option 5146A was not updated. 2 Power Cord 180-2004 was replaced by 7040702. Option 5045A-Z was not updated. 3 Power Cord 180-2095 was replaced by 7040686. Option 5046A-Z was not updated. 4 Power Cord 180-2096 was replaced by 7040688. Option 5047A-Z was not updated.
