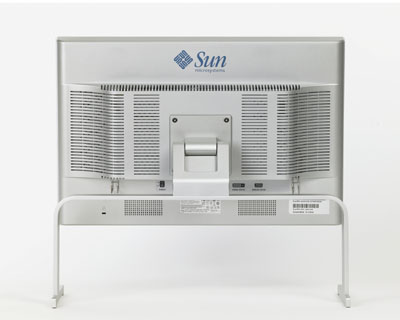

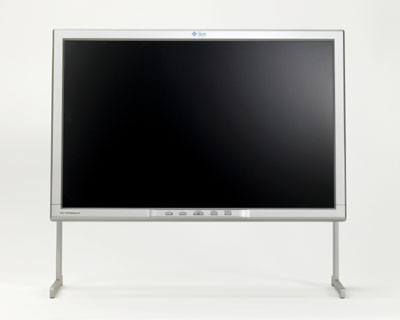

24.1-Inch Color LCD Monitor (Generation 4)
365-1434

Part Numbers
Option	MFG Part #	Description
X7236A [S]	365-1434 [C] 530-3505 [C] 530-3506 [C] 530-3640 [C]	24.1 Color LCD MONITOR HD15(M)/HD15(M) Adapter, 1.8M DVI-D(M)/DVI-D(M) Cable, 3.0M USB 2.0 Upstream Cable, 1.8M

Supported Resolutions / Timings Pixel Resolution Horizontal Frequency Vertical Frequency Pixel Frequency 1920 × 1200 73.54 KHz 59.596 Hz 151.2 MHz 1920 × 1080 66.98 KHz 60.23 Hz 137.7 MHz   1280 × 1024 79.976 KHz 75.025 Hz 135.00 MHz 1280 × 1024 63.981 KHz 60.020 Hz 108.00 MHz   Note: Monitor should only be used at its native resolution of 1920x1200 (at 60 Hz). No other timings are recommended for normal use, and will degrade the overall quality of the displayed content. Note: 1920x1080 (at 60 Hz) is a Convenience mode only, for HDTV.

Quick Facts Code Name Banyan Model WDZF Serial Number Location Back GA Date December 4, 2007 EOL n/a EOSL n/a Warranty 1 year

Specifications
Actual Screen Size	24.1 in Diagonal
Display Active Area	518.0 mm Horizontal × 324.0 mm vertical × 611.327 mm Diagonal (20.41 in H × 12.76 in V × in 24.068 in D)
Pixel Pitch	0.270 mm (0.01063 in)
Contrast Ratio	1000:1 (typical), 700:1 minimum
Sync Input	Separate and Composite
Horizontal Scan	30.0 KHz to 82.0 KHz (Digital) 30.0KHz to 94.0 KHz (Analog)
Vertical Scan	56 Hz to 76 Hz
Power Consumption
	105 Watts maximum (90 Watts typical; includes =< 10 Watts max of USB power).
	Energy Star Compliant	Yes
TCO' 06	Yes
Dimensions (w × d × h)	568.0 mm × 240.0 mm × 482.3 mm (22.4 in × 9.4 in × 19.0 in) 568.0mm x 97.9 mm x 373.6 mm (without the stand)
Weight	8.0 kg (17.64 lb)
Environmental	Operating		Storage	Shipping
	Temperature: 10° to 40° C (50° to 104° F) Humidity: 10% to 80% non-condensing		Temperature: -20° to 45° C (-4° to 113° F) Humidity: 5% to 95% non-condensing	Temperature: n/a Humidity: n/a Altitude: n/a
Notes	This monitor is PC compatible USB 2.0 4-port active hub built in
