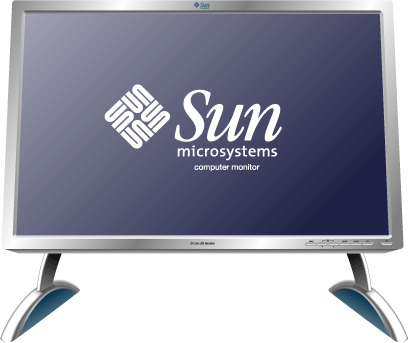

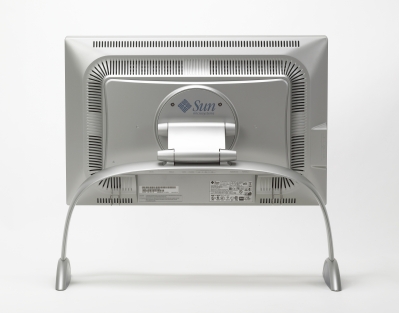

24.1-Inch Color LCD Monitor
365-1427

Part Numbers
Option	MFG Part #	Description
X7203A	365-1427 [C] 530-3622 [C] 530-3505 530-3506 530-3637 530-3638 530-3639 530-3640 [C]	24.1 Color LCD MONITOR Cable Kit/FRU HD15(M)/HD15(M) Adapter, 1.8M DVI-D(M)/DVI-D(M) Cable, 3.0M Triple RCA Component Video Cable S-Video Cable RCA Composite Video Cable USB 2.0 Cable, 1.8M

Supported Resolutions / Timings Pixel Resolution Horizontal Frequency Vertical Frequency Pixel Frequency 1920 × 1200 (Mode I) 73.54 KHz 59.6 Hz 151.2 MHz 1920 × 1080 (Mode II) 66.98 KHz 60.2 Hz 137.7 MHz   1280 × 1024 (Mode III) 63.98 KHz 60.0 Hz 108.0 MHz 1600 × 1200 (Mode IV) 74.49 KHz 60.1 Hz 132.3 MHz

Quick Facts Code Name Kenari Model BR24CS Serial Number Location Back GA Date August 2006 EOL n/a EOSL n/a Warranty 1 year

Specifications
Actual Screen Size	61.13 cm (24.068 in)
Image Size	518.4 mm Horizontal × 324.0 mm vertical × 611.3 mm Diagonal (20.41 in H × 12.76 in V × in 24.07 in D)
Pixel Pitch	0.270 mm × 0.270 mm
Contrast Ratio	1000:1 (typical)
Sync Input	Analog video 0.7 V peak @ 75 Ohms, Separate H/V sync, TTL, level positive or negative
Horizontal Scan	30.0 kHz to 82.0 kHz
Vertical Scan	56 Hz to 76 Hz
Power Consumption	Operating Voltage		Input Current	Input Power	BTU/hr
	AC	100 - 240 Volt (± 10%), 60 Hz/50 Hz ± 3 Hz	n/a	>63 W* (Analog/Digital)	n/a
	* Maximum power consumption is measured after allowing the unit to remain powered on for a minimum of 30 minutes so as to become thermally stable.
Energy Star Compliant	Yes
TCO' 03	Yes
Dimensions (w × h × d)	591.5 mm × 276.0 mm × 458.0 mm (23.2 in × 10.9 in × 18.0 in)
Weight	9.4 kg (20.72 lb)
Environmental	Operating		Storage	Shipping
	Temperature: 0° to 40° C (32° to 104° F) Humidity: 20% to 80% non-condensing		Temperature: -20° to 60° C (-4° to 140° F) Humidity: 5% to 93% non-condensing	Temperature: n/a Humidity: n/a Altitude: n/a
Notes	This monitor is PC compatible USB 2.0 hub built in Component Video (YPbPr), Composite Video, and S-Video inputs
