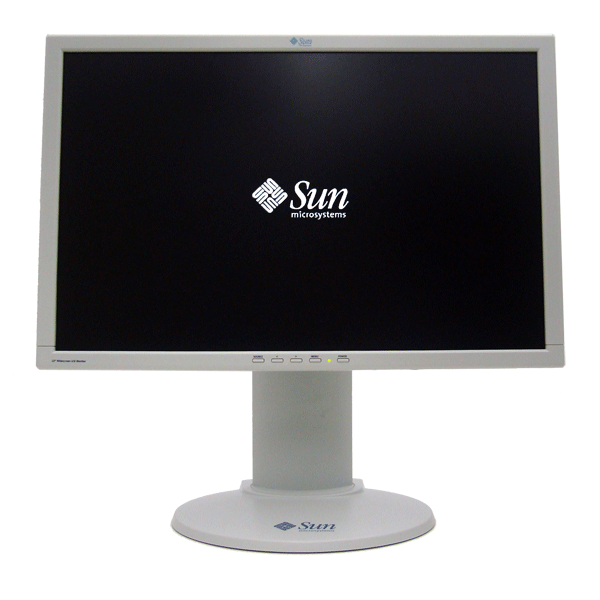

22-inch Color LCD Monitor
365-1435
| Part Numbers |
|
Option
|
MFG Part #
|
Description
|
| X7237A |
365-1435 [C] |
22 inch LCD Monitor |
| |
530-3505 [C] |
HD15/HD15 Video Cable |
| |
530-3506 [C] |
DVI-D/DVI-D Video Cable |
| Supported
Resolutions / Timings |
|
Pixel Resolution
|
Horizontal Frequency
|
Vertical Frequency
|
Pixel Frequency
|
| VESA 1920 x 1200 |
73.541 KHz |
59.596 Hz |
151.2 MHz |
| VESA 1280 x 1024 |
63.981 KHz |
60.020 Hz |
108.0 MHz |
| VESA 1600 x 1200 |
74.493 KHz |
60.026 Hz |
132.3 MHz |
| VESA 1152 x 900 |
61.845 KHz |
66.000 Hz |
94.5 MHz |
| |
Note: Monitor should only be used at its native resolution of 1680x1050 (at 60Hz).
No other timings are recommended for normal use, and will degrade the overall quality
of the displayed content.
Note: It is recommended to change to 1680x1050 (at 60Hz) once video from the
computer system is seen on the display. |
|
 |
| Quick
Facts |
|
Code Name
|
Memphis |
| Model |
WBZF-B1 |

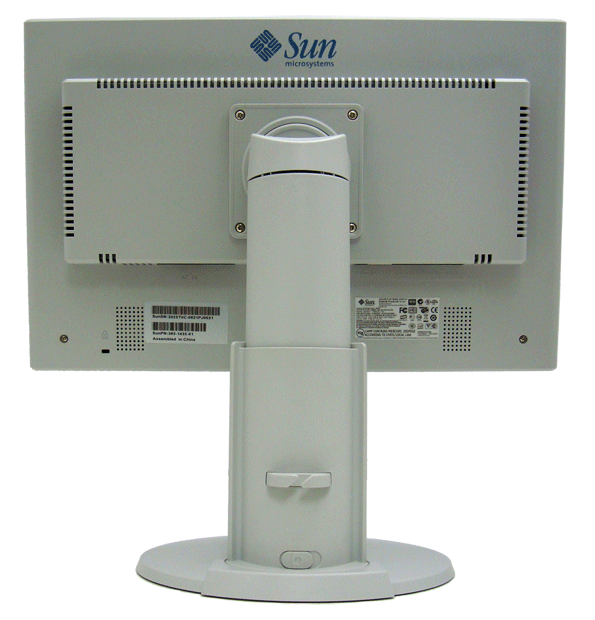

| Serial Number Location |
Rear Label |
| GA Date |
July 8, 2008 |
| EOL |
n/a |
| EOSL |
n/a |
| Warranty |
1 year |
|
|
Specifications
|
| Actual Screen Size |
22 inch diagonal |
| Image Size |
473.8 mm (18.7 in.) Horizontal, 296.1 mm (11.7 in.) Vertical |
| Pixel Pitch |
0.282 mm (0.01111 in.) Horizontal x 0.282 mm (0.01111 in.) Vertical |
| Sync Input |
Composite or Separate |
| Horizontal Scan |
30 KHz - 83.0 KHz (Analog), 30 KHz - 82 KHz (Digital) |
| Vertical Scan |
56.0 Hz to 76.0 Hz |
| Power Consumption |
55 W (maximum), 42 W (typical)
Full continuous operation: 110 V AC or 220 V AC |
| Energy Star Compliant |
Yes |
| Dimensions (w x d x h) |
Monitor with Stand: 513.8 mm x 230.5 mm x 369.8 mm (20.23 in x 9.07 in x14.56 in).
Monitor without Stand: 513.8 mm x 67.4 mm x 336.1 mm (20.23 in x 2.65 in x 13.23 in).
|
| Weight |
Display Head Assembly: 4.8 kg (10.57 lbs)
Base Assembly: 2.1 kg (4.6 lbs)
Total Packaged Weight: 6.9 kg (15.2 lbs) |
| Environmental |
Operating
|
Non-Operating (Storage)
|
Temperature: 10° to 40° C (50° to 104° F)
Humidity: 10% to 80% non-condensing
Altitude: 70 kPa |
Temperature: -20° to 45° C (-4° to 113° F)
Humidity:5% to 95%
Altitude: 19.3 kPa |
| Reliability |
MTBF: Monitor Assy, Calculated 50K Hours minimum
Life: 50K Hours minimum |
Input Connector
| DVI-D
Connector |
| Pin |
Signal |
|
1
|
T.M.D.S. Data2- |
|
2
|
T.M.D.S. Data2+ |
|
3
|
T.M.D.S. Data2/4 Shield |
|
4
|
T.M.D.S. Data4- |
|
5
|
T.M.D.S. Data4+ |
|
6
|
DDC Clock |
|
7
|
DDC Data |
|
8
|
No Connection |
|
9
|
T.M.D.S. Data1- |
|
10
|
T.M.D.S. Data1+ |
|
11
|
T.M.D.S. Data1/3 Shield |
|
12
|
T.M.D.S. Data3- |
|
13
|
T.M.D.S. Data3+ |
|
14
|
+5V DDC Power |
|
15
|
Ground (+5V, HSync, and VSync return) |
|
16
|
Hot Plug Detect |
|
17
|
T.M.D.S. Data0- |
|
18
|
T.M.D.S. Data0+ |
|
19
|
T.M.D.S. Data0/5 Shield |
|
20
|
T.M.D.S. Data5- |
|
21
|
T.M.D.S. Data5+ |
|
22
|
T.M.D.S. Data Clock Shield |
|
23
|
T.M.D.S. Data Clock + |
|
24
|
T.M.D.S. Data Clock - |
|
C1
|
Not Connected |
|
C2
|
Not Connected |
|
C3
|
Not Connected |
|
C4
|
Not Connected |
|
C5
|
Not Connected |
|
| HD15
Connector |
| Pin |
Signal |
|
1
|
Red |
|
2
|
Green |
|
3
|
Blue |
|
4
|
Not used, grounded |
|
5
|
Serial data ground |
|
6
|
Red ground |
|
7
|
Green ground |
|
8
|
Blue ground |
|
9
|
+5V DC |
|
10
|
Sync ground |
|
11
|
Not used, grounded |
|
12
|
SDA, DDC data I/O |
|
13
|
Hsync |
|
14
|
Vsync |
|
15
|
SCL, DDC clock input |
|
|
