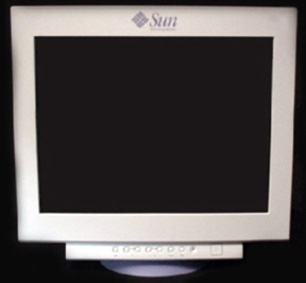

22-inch Flat Display Premium Color Monitor
365-1418



Part Numbers
Option
MFG Part #
Description
X7149A [S]
n/a
n/a 		365-1418 [C]
530-2494 [C]
530-3171 [C]		 22-inch Flat Display Premium Color Monitor
HD15/HD15 Video Cable, 1.8M
DVI-A(M)/HD15(M) Video Cable, 2M
X7149A-STH [S]
n/a
n/a 		365-1419
530-2494 [C]
530-3171 [C] 		22-inch Flat Display Premium Color Monitor (Southern Hemisphere)
HD15/HD15 Video Cable, 1.8M
DVI-A(M)/HD15(M)Video Cable, 2M
Supported Resolutions / Timings
Pixel Resolution
Horizontal Frequency
Vertical Frequency
Pixel Frequency
1152 × 900
61.845 KHz
66.003 Hz
94.50 MHz
1152 × 900
71.81 KHz
76.15 Hz
108.00 MHz
1280 × 768
60.023 KHz
75.029 Hz
78.750 MHz
1280 × 1024
79.976 KHz
75.025 Hz
135 MHz
1280 × 1024
81.13 KHz
76.11 Hz
135 MHz
1280 × 1024
120.94 KHz
111.982 Hz
216 MHz
1600 × 1200
93.75 KHz
75 Hz
202.5 MHz
2048 × 1536
120.384 KHz
74.959 Hz
339 MHz
Quick Facts

Code Name

 Callisto
Model C22BW711 (NEC-Mitsubishi)
Serial Number Location Back
GA Date January 13, 2004
EOL n/a
EOSL n/a
Warranty 1 year

Specifications
Actual Screen Size 508mm (20in)
Image Size Mode I: 396mm Horizontal, 297mm Vertical, 495mm Diagonal (15.59in H, 11.69in V, 19.48in D)
Mode II: 371mm Horizontal, 297mm Vertical, 475.24mm Diagonal (14.60in H, 11.69in V, 18.71 in D)
Dot Pitch .24mm
Sync Input Combined/Separate
Horizontal Scan 30khz - 140khz
Vertical Scan 50hz - 160hz
Power Consumption

Operating Voltage

Input Current

Input Power

BTU/hr
115 VAC 90 - 132 1.35 (max) 135W 461
230 VAC 180 - 264 0.65 (max) 135W 461
Energy Star Compliant Yes
Dimensions (w × h × d) 495mm × 486mm × 477mm (19.49in × 19.13in × 18.77in)
Weight 29.3 kg (64.59 lbs)
Environmental

Operating

Storage

Shipping
Temperature: 5° to 35° C (41° F t° 95º F)
Humidity: 10% to 90% noncondensing
Altitude: Sea Level to 3048m (10000ft)		 Temperature: -20° to 40° C (-4° F t° 104º F)
Humidity: 5% to 95% noncondensing
 Temperature: -20° to 60° C (-4° F t° 140º F)
Humidity: 10% to 90% noncondensing
Altitude:Sea Level to 10674m (35019ft)
Reliability 110K Hours MTBF
Notes This monitor is PC compatible.
22-inch Premium Flat Color Monitor User's Manual


Input Connector

HD15 Connector
Pin Signal
1
 Red
2
 Green
3
 Blue
4
 Gnd
5
 Sense
6
 Rgnd
7
 Ggnd
8
 Bgnd
9
 +5V
10
 Syncgnd
11
 Gnd
12
 SDA
13
 Hsync *
14
 Vsync
15
 SCL
* - Pin 13 (Hsync) must be able to accept composite sync (with no signal on pin 14 (Vsync)).
