21-inch Flat Display Premium Color Monitor
365-1399 / 365-1400 / 365-1401



Part Numbers
Option
MFG Part #
Description

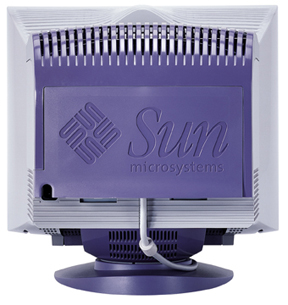

X7136A [S] 365-1399 [C] 21" FD Premium Color Monitor, 2.0M 13W3 Video Cable, 370-4064 - rear cover
X7136A-0 365-1400 21" FD Premium Color Monitor (logoless), 2.0M 13W3 Video Cable, 370-4065- rear cover
X7136A-STH 365-1401 21" FD Premium Color Monitor (Southern Hemisphere), 2.0M 13W3 Video Cable
Supported Resolutions / Timings
Pixel Resolution
Horizontal Frequency
Vertical Frequency
Pixel Frequency
1024 × 768
60.02 kHz
75.03 Hz
78.7 MHz
1152 × 900
61.84 kHz
66 Hz
94.5 MHz
1152 × 900
71.81 kHz
76.15 Hz
108 MHz
1280 × 1024
71.69 kHz
67.19 Hz
117 MHz
1280 × 1024
79.97 kHz
75.02 Hz
135 MHz
1280 × 1024
81.13 kHz
76.11 Hz
135 MHz
1280 × 1024
120.94 kHz
111.98 Hz
216 MHz
1600 × 1200
93.75 kHz
75 Hz
202.5 MHz
Variable
30 - 121 kHz
48 - 160 Hz
Variable
Quick Facts

Code Name

 Century
Model GDM-5410 (Sony)
Serial Number Location Rear
GA Date September, 1999
EOL n/a
EOSL n/a
Warranty n/a
Specifications
Actual Screen Size 502.92 mm (19.8 inches)
Image Size Mode I - 364 mm Horizontal, 291 mm Vertical, 466 mm Diagonal (14.33 in H, 11.45 in V, 18.34 in D)
Mode II - 388 mm Horizontal, 291 mm Vertical, 485 mm Diagonal (15.27 in H, 11.45 in V, 19.09 in D)
Dot Pitch .24 mm (.009 in)
Sync Input Combined/Separate
Horizontal Scan 30khz - 121khz
Vertical Scan 48hz - 160hz
Power Consumption

Operating Voltage

Input Current

Input Power

BTU/hr
115 VAC
90 - 132
2.0 A (max)
130W (typical), 160W (max)
544
230 VAC
200 - 240
1.0 A (max)
130W (typical), 160W (max)
544
Energy Star Compliant Yes
Dimensions (w × h × d) 501 mm × 498 mm × 498 mm (19.72 in × 19.60 in × 19.60 in)
Weight 32.5 kgs (71.65 lbs)
Environmental

Operating

Storage

Shipping
Temperature: 10° to 40° C (50° to 104° F)
Humidity: 20% to 80% non-condensing
Altitude: Sea level to 3048m (10000 ft)		 Temperature: -20° to 40° C (-4° to 104° F)
Humidity: 5% to 95% non-condensing
 Temperature: -20° to 55° C (-4° to 131° F)
Humidity: 5% to 95% noncondensing
Altitude: Sea level to 10675m (35000 ft)
Reliability 110k Hours MTBF
Notes This monitor is PC compatible.

Monitor Cables


Input Connectors

DB13W3 Connector
Pin Signal
1
 DDC clock input
2
 +5V from Framebuffer
3
 Sense 2
4
 Sgnd
5
 Csync
6
 DDC data I/O
7
 Vsync
8
 Sense 1
9
 Sense 0
10
 Cgnd
A1
 Red
A2
 Green
A3
 Blue
S0 and S1 are grounded. The Sense Code is 4.
HD15 Connector
Pin Signal
1
 Red
2
 Green
3
 Blue
4
 Not used
5
 Sgnd
6
 Red ground
7
 Green ground
8
 Blue ground
9
 Not used
10
 Sync ground
11
 Not used
12
 DDC data
13
 Horizontal sync
14
 Vertical sync
15
 DDC clock
Pin-13 accepts Composite Sync if Vsync is not present on Pin-14.
