19-inch Flat Display Premium Color Monitor
365-1403 / 365-1404 / 365-1405



Part Numbers
Option
MFG Part #
Description
X7135A 365-1403 [C] 19" FD Premium Color Monitor, 2.0M HD15 Video Cable
X7135A-0 365-1404 19" FD Premium Color Monitor (logoless), 2.0M HD15 Video Cable
X7135A-STH 365-1405 19" FD Premium Color Monitor (Southern Hemisphere), 2.0M HD15 Video Cable
Supported Resolutions / Timings
Pixel Resolution
Horizontal Frequency
Vertical Frequency
Pixel Frequency
1024 × 768
60.023 kHz
75.029 Hz
78.750 MHz
1152 × 900
61.8455 kHz
66.0038 Hz
94.50 MHz
1152 × 900
71.81 kHz
76.15 Hz
108 MHz
1280 × 1024
71.6912 kHz
67.1895 Hz
117 MHz
1280 × 1024
79.976 kHz
75.025 Hz
135 MHz
1280 × 1024
81.13 kHz
76.11 Hz
135 MHz
1600 × 1200
93.75 kHz
75 Hz
202.5 MHz
1600 × 1280
101.8 kHz
76 Hz
216 MHz
Variable
30 - 107 kHz
48 - 120 Hz
Variable
Quick Facts

Code Name

 Plano
Model CPD-4410 (Sony)

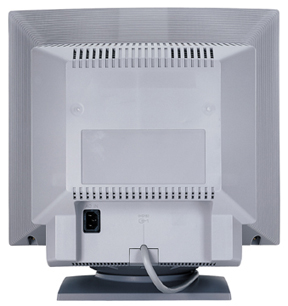

Serial Number Location Rear
GA Date n/a
EOL December 31, 2000
EOSL December 31, 2005
Warranty n/a
Specifications
Actual Screen Size 457 mm (18 inches)
Image Size 365 mm Horizontal, 274mm Vertical, 456 mm Diagonal (14.37 in H, 10.78 in V, 17.95 in D)
AG Pitch .24 mm - .25 mm Variable (.00945 in - .00984 in)
Sync Input Combined/Separate
Horizontal Scan 30khz-107khz
Vertical Scan 48hz-120hz
Power Consumption

Operating Voltage

Input Current

Input Power

BTU/hr
115 VAC
90 - 132
2.0 A (max)
110W (typical)
140W (max)
478.12 (max)
230 VAC
200 - 240
1.0 A (max)
110W (typical)
140W (max)
110W (typical)
140W (max)
Energy Star Compliant Yes
Dimensions (w × h × d) 449 mm × 463 mm × 463 mm (17.67 in × 18.22 in × 18.22 in)
Weight 26 kg (57.32 lb)
Environmental

Operating

Storage

Shipping
Temperature: 10° C to 40° C (50° to 104° F)
Humidity: 20%to 80% noncondensing
Altitude: Sea level to 3048m (10,000ft) 		Temperature: 0° C to 40° C (32° to 104° F)
Humidity: 5%to 90% noncondensing
Temperature: -20° C to 55° C (-4° to 131° F)
Humidity: 5%to 95% noncondensing
Altitude: Sea level to 10675m (35,000ft)
Reliability 110k Hours MTBF
Notes This monitor is PC compatible

Monitor Cables


Input Connector

HD15 Connector
Pin Signal
1
 Red
2
 Green
3
 Blue
4
 Not used
5
 Sgnd
6
 Red ground
7
 Green ground
8
 Blue ground
9
 Not used
10
 Sync ground
11
 Not used
12
 DDC data
13
 Hsync
14
 Vsync
15
 DDC clock
Pin-13 accepts Composite Sync if Vsync is not present on Pin-14
