System Configuration Card Reader

Sun Fire V250 Codename: Enchilada 2P Tower

Notes:

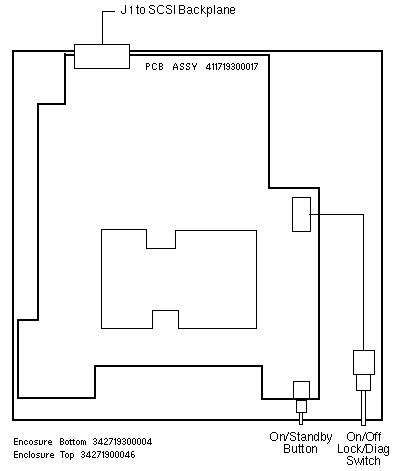

1. Assembly/FRU 370-5646 includes the Enclosure, System Configuration Card Reader, SCCR Bezel, SCCR Button, Rotary Switch with Cable, and Rotary Switch Knob.
2. The Button and Switch circuitry is routed from SCCR J1 to SCSI Backplane J2 to SCSI Backplane J503 to System Board PB/LED via a Ribbon Cable.
3. After the V250 Last Ship Date in September 2005, 370-5646 may or may not ship with the top enclosure part. The top enclosure part (34271900046) is optional.

References

1. Sun Fire V250 Server Documentation.
