StorageTek SL8500 Modular Library system

Exploded Views

Customer Interface Module
Storage Expansion Module
Robotics Interface Module
Drive & Electronics Module
Pass-Thru Port Mechanism


Customer Interface Module

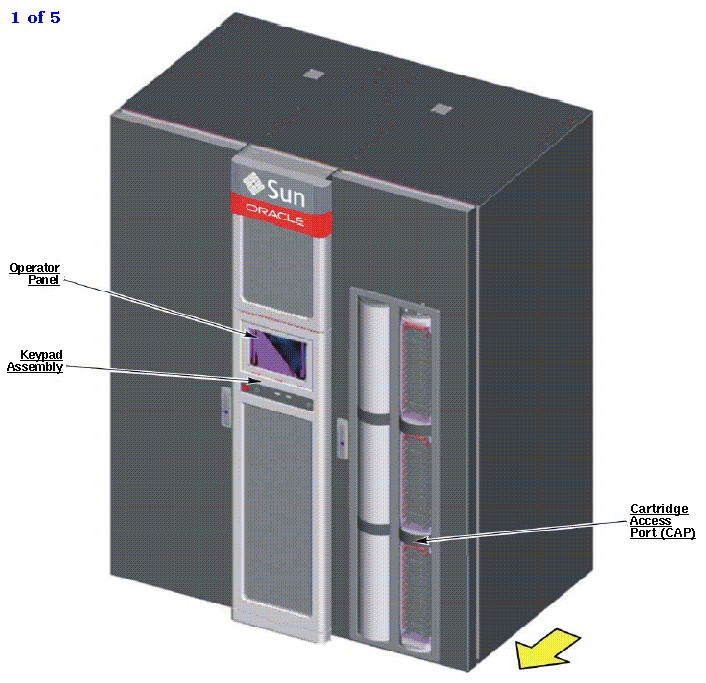

SL8500 Customer Interface Module Operator Panel Keypad Assembly Cartridge Access Port (CAP)

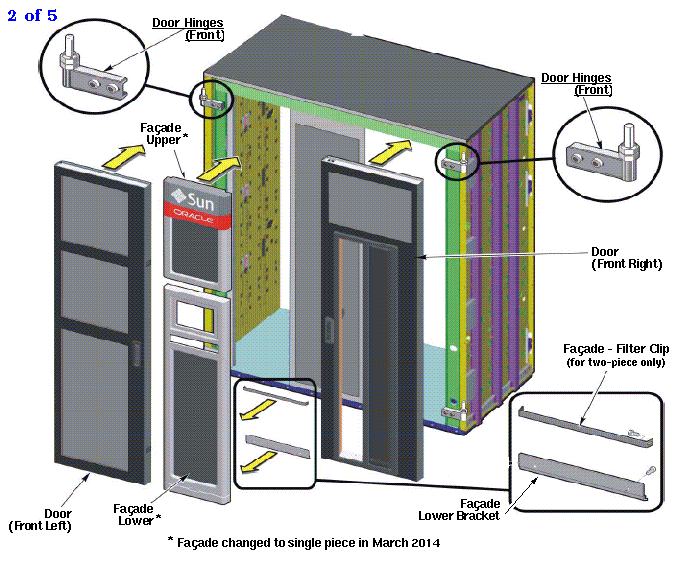

SL8500 Customer Interface Module Door Hinge Door Hinge

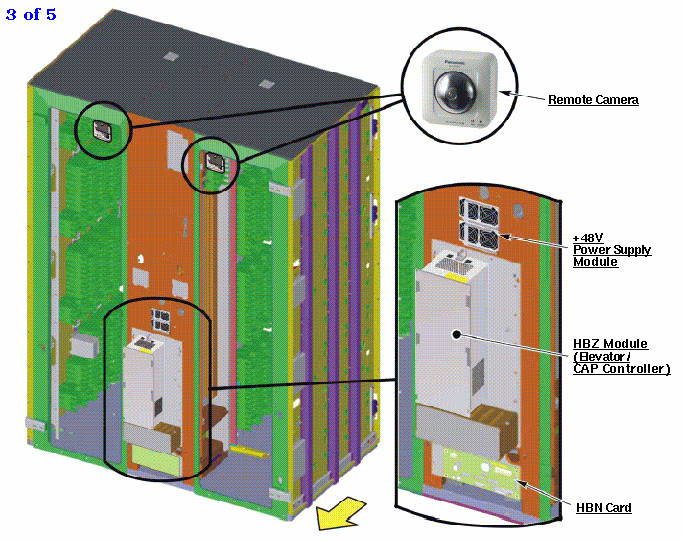

SL8500 Customer Interface Module Remote Camera +48V Power Supply HBZ Module HBN Card

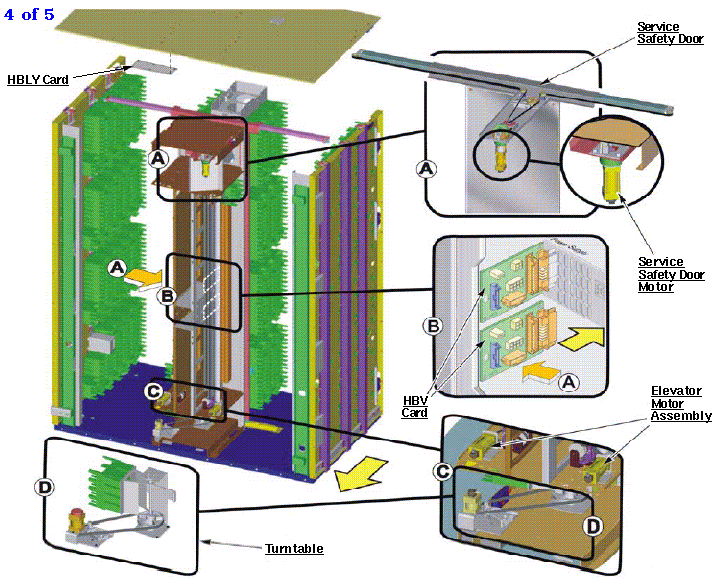

SL8500 Customer Interface Module HBLY Card Turntable Service Safety Door Service Safety Door Motor Elevator Motor Assembly HBV Card

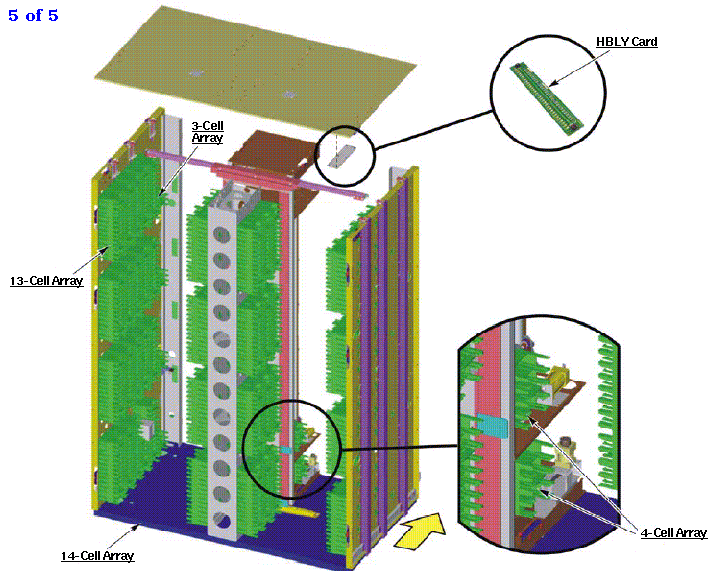

SL8500 Customer Interface Module 13-Cell Array 14-Cell Array 3-Cell Array HBLY Card 4-Cell Array


Storage Expansion Module

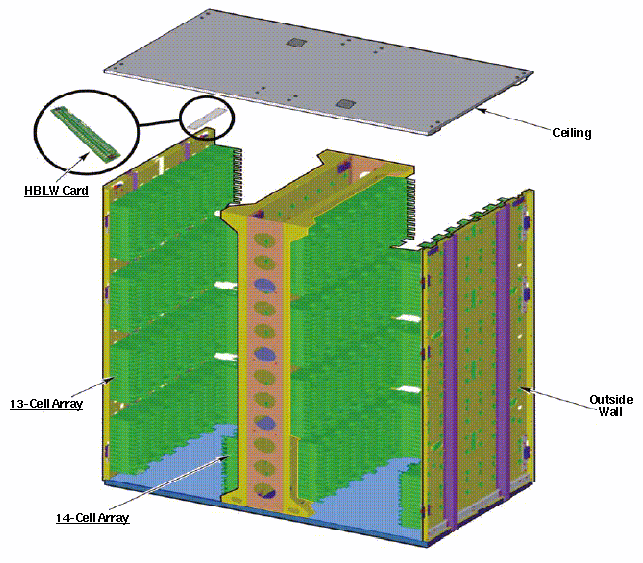

SL8500 Storage Expansion Module HBLW Card 13-Cell Array 14-Cell Array


Robotics Interface Module

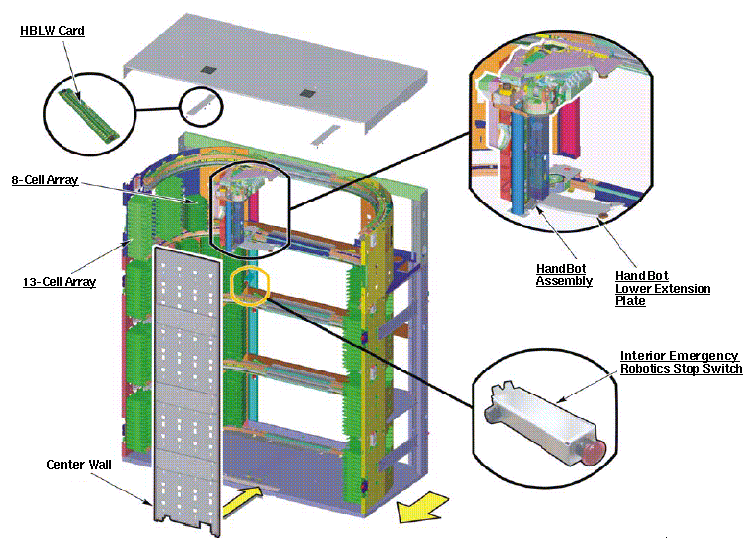

SL8500 Robotics Interface Module HBLW Card 8-Cell Array 13-Cell Array HandBot Assembly HandBot Lower Extension Plate Interior Emergency Robotics Stop Switch


Drive & Electronics Module

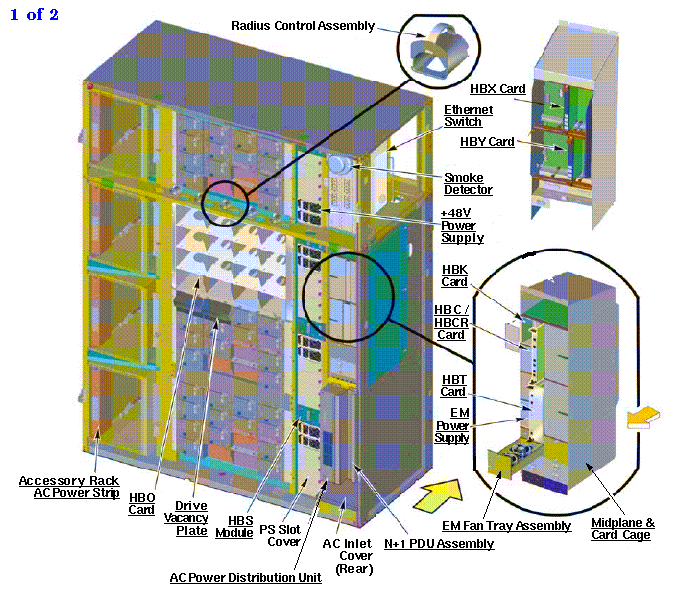

SL8500 Drive & Electronics Module Accessory Rack AC Power Strip HBO Card Drive Vacancy Plate HBS Module AC Power Distribution Unit N+1 PDU Assembly HBX Card Ethernet Switch HBY Card Smoke Detector +48V Power Supply HBK Card HBC/HBCR Card HBT Card EM Card Cage Power Supply EM Fan Tray Assembly Midplane & Card Cage

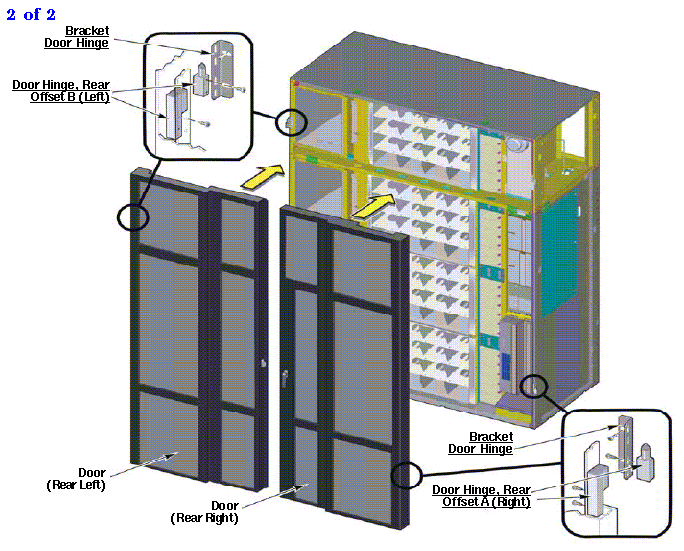

SL8500 Drive & Electronics Module Bracket (Door Hinge) Door Hinge (Rear Left) Bracket (Door Hinge) Door Hinge (Rear Right)


Pass-Thru Port Mechanism

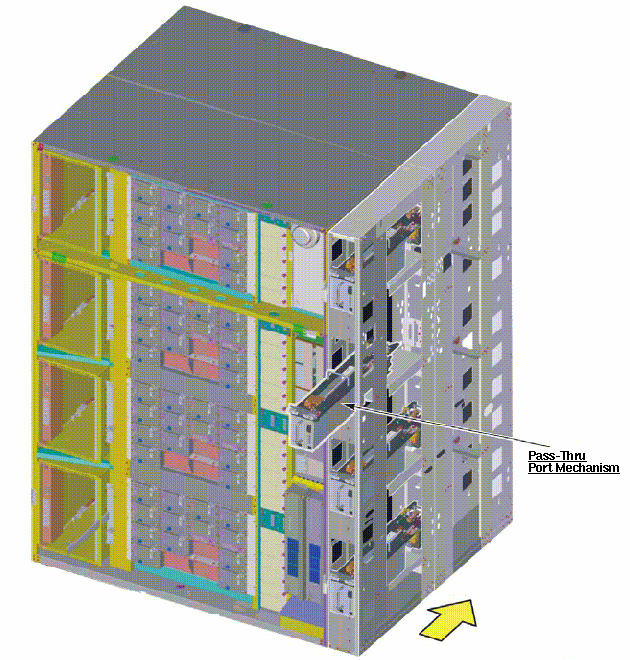

SL8500 Pass-Thru Port Mechanism Pass-Thru Port Mechanism
