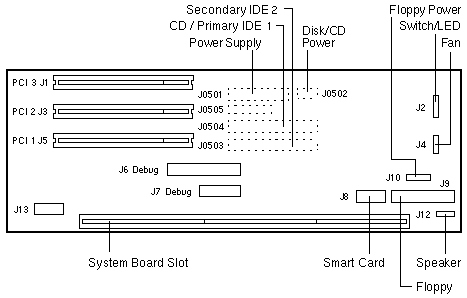

PCI Riser Board

370-4873
5V 32Bit 33MHz

Sun Blade 150 Codename: Grover+

Notes

  1. The PCI signaling is 5V, 32Bits, 33MHz.
  2. All slots support 32-bit or 64-bit PCI boards.
  3. There is no Sun part number for the I/O Board EMI Shield.
  4. The serial port at J13 is not supported.

References

  1. Sun Blade 150 Workstation Documentation.
