Servers:	Sun Fire V480, V490, V880, V890
Do NOT use this table to determine part number support.

Options 7050 / 7051 / 7053 / 7056

501-4489	F501-5030	501-5401	F501-6109

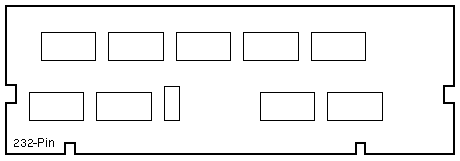

128MB DIMM 3.3V ECC / 7ns SDRAM Option 7050 750MHz V880 only	512MB DIMM 501-5030 512MB DIMM 501-7385 3.3V ECC / 7ns SDRAM Option 7051	256MB DIMM 3.3V ECC / 7ns SDRAM Option 7053 not supported on V490 or V890	1GB DIMM 501-6109 1GB DIMM 501-7386 3.3V ECC / 7ns SDRAM Option 7056 not supported at 750MHz

Options 7051A-Z / 7056A-Z / 7058A-Z

501-7385	501-7386	501-6242
512MB DIMM 3.3V ECC / 7ns SDRAM Option 7051A-Z	1GB DIMM 3.3V ECC / 7ns SDRAM Option 7056A-Z not supported at 750MHz	2GB DIMM 2GB FRU 540-6489 3.3V ECC / 7ns SDRAM Option 7058A-Z not supported on V480 or V880

CPU to Memory Association

SOCKET	CPU	MEMORY	GROUP	INSTALLATION
J2900 J2901 J3001 J3000	0 1 4 5 0 1 4 5 0 1 4 5 0 1 4 5	A0 A0 A0 A0	1st Group 1st Group 1st Group 1st Group	Required Required Required Required
J7900 J7901 J8001 J8000	2 3 6 7 2 3 6 7 2 3 6 7 2 3 6 7	B0 B0 B0 B0	2nd Group 2nd Group 2nd Group 2nd Group	Required Required Required Required
J3100 J3101 J3201 J3200	0 1 4 5 0 1 4 5 0 1 4 5 0 1 4 5	A1 A1 A1 A1	3rd Group 3rd Group 3rd Group 3rd Group	Optional Optional Optional Optional
J8100 J8101 J8201 J8200	2 3 6 7 2 3 6 7 2 3 6 7 2 3 6 7	B1 B1 B1 B1	4th Group 4th Group 4th Group 4th Group	Optional Optional Optional Optional

CPU to Memory Group Map

CPU	CPU/Memory Slot	Associated DIMM Group
CPU 0	Slot A	A0, A1
CPU 2	Slot A	B0, B1
CPU 1	Slot B	A0, A1
CPU 3	Slot B	B0, B1
CPU 4	Slot C	A0, A1
CPU 6	Slot C	B0, B1
CPU 5	Slot D	A0, A1
CPU 7	Slot D	B0, B1

System Codenames

Notes

1. Four DIMMs of the same size form a group.
2. For 750MHz and 900MHz system boards, the minimum memory is eight DIMMS in groups A0 and B0.
3. For 1050MHz and higher system boards, the minimum memory is sixteen DIMMs in groups A0, A1, B0, and B1.
4. DIMMs must be added four-at-a-time within the same group of DIMM slots; every fourth slot belongs to the same DIMM group.
5. Whenever possible, have each group consist of four DIMMs from the same manufacturing vendor.
6. DIMM groups associated with a failed CPU are unavailable for use.
7. Interleaving is limited to memory on the same CPU/Memory Board.
8. Two-way interleaving occurs in any group when the DIMM size does not match the size used in any other group.
9. Four-way interleaving occurs between any two groups when the DIMM sizes are the same.
10. Eight-way interleaving occurs when the DIMMs in all four groups are the same size.
11. 1GB DIMM FRU F540-5086, which includes 501-6109, was released in October 2001.
12. 1GB DIMM FRU F501-6109 replaced F540-5086 in December 2003.
13. DIMM 501-7385 was added to F501-5030 in February 2006. (WO_32424)
14. DIMM 501-7386 was added to F501-6109 in February 2006. (WO_32424)
15. DIMM 501-7385 was removed from F501-5030 in April 2006. (WO_32903)
16. DIMM 501-7386 was removed from F501-6109 in April 2006. (WO_32903)
17. DIMM 501-7385 was added to Option 7051 as a manufacturing substitute in February 2006. (WO_32418/WO_32562)
18. DIMM 501-7386 was added to Option 7056 as a manufacturing substitute in February 2006. (WO_32418/WO_32562)
19. 1GB DIMMs are not supported on 750MHz CPU/Memory boards in Sun Fire V880.
20. 128MB DIMMs are only supported on 750MHz CPU/Memory boards in Sun Fire V880.

References

1. Sun Fire V480 Server Documentation.
2. Sun Fire V490 Server Documentation.
3. Sun Fire V880 Server Documentation.
4. Sun Fire V890 Server Documentation.
