Options 4291A / 4292A / 4293A

371-2435	371-2436	371-2437

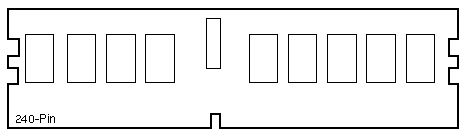

DDR2-667/PC2-5300 CL4/ECC/Registered 1GB DIMM 2GB FRU 540-7255 2GB Option 4291A	DDR2-667/PC2-5300 CL4/ECC/Registered 2GB DIMM 4GB FRU 540-7256 4GB Option 4292A	DDR2-667/PC2-5300 CL4/ECC/Registered 4GB DIMM 8GB FRU 540-7257 8GB Option 4293A

Sun Blade X6220 Codename: Gemini

Notes

1. DIMM fault LEDs are located in the DIMM ejectors.
2. Press Locate Fault button SW3300 to illuminate the system board fault LEDs.

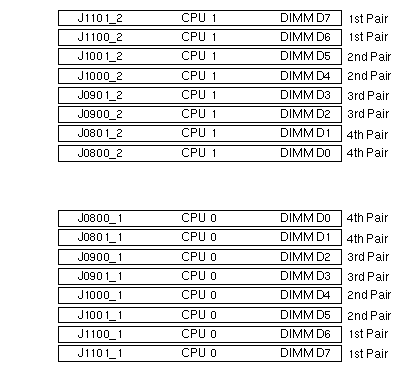

3. DIMMs must be installed in pairs.
   The memory sockets are colored black or white to indicate which slots are paired by matching colors.
4. Each pair of DIMMs must be identical (same manufacturer, size and speed).
5. Populate the DIMMs in the slots farthest from the CPU first.
   The first pair to be populated should be D7/D6, then D5/D4, and so on.

References

1. Sun Blade X6220 Server Module Documentation.
