Option 7040

No Sun Part Number No Sun Part Number 370-2439 370-3553
4MB MPU SIMM
No Option Number
LSI Part #
006-1087895 		8MB MPU/RPA SIMM
No Option Number
LSI Part #
006-1087894 		32MB RPA SIMM
Option 7040 <3/98
LSI Part #
006-1087891 		32MB RPA SIMM
Option 7040 >3/98
LSI Part #
n/a

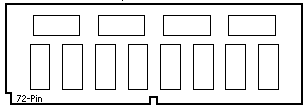

Front View of 4MB MPU SIMM

Rear View of 4MB MPU SIMM

Front View of 8MB MPU/RPA SIMM

Rear View of 8MB MPU/RPA SIMM

Front View of 32MB RPA SIMM 370-2439 and 370-3553

Notes

  1. The Main Processor Unit (MPU) SIMMs serve as processor memory.
  2. The RAID Parity Assist (RPA) SIMMs serve as cache memory.
  3. Install 8MB or 32MB SIMMs in RPA slots SIMM-1 and SIMM-2.
  4. Install 4MB or 8MB SIMMs in MPU slots SIMM-3 and SIMM-4.

References

  1. Sun StorEdge A1000 Array Documentation.
