SPARC Enterprise T5440 Memory Module

501-7785	541-2551
DDR2-667 Memory Module FAB 270-7785	Memory Module FRU Memory Module 501-7785

Additional Information & Views

SPARC Enterprise T5440 Codename: Batoka 4U

Notes

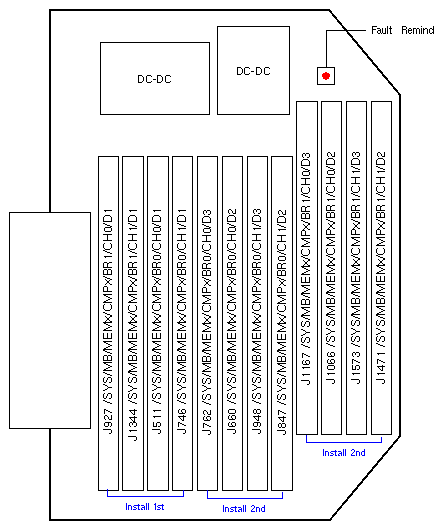

1. Install four FBDIMMs in D1 first. Install eight FBDIMMS in D2 and D3 next.
2. All FBDIMMs within a single CPU/Memory module must have the same memory size.
3. FBDIMMs on different CPU/Memory modules can be of different sizes.
4. Mixing DDR2-667 and DDR2-800 Memory Modules is not supported.

References

1. Sun SPARC Enterprise T5440 Server Documentation.

SPARC Enterprise T5440 Codename: Batoka 4U

Notes

1. Install four FBDIMMs in D1 first. Install eight FBDIMMS in D2 and D3 next.
2. All FBDIMMs within a single CPU/Memory module must have the same memory size.
3. FBDIMMs on different CPU/Memory modules can be of different sizes.
4. Mixing DDR2-667 and DDR2-800 Memory Modules is not supported.
5. DDR2-800 Memory Modules are not compatible with 1.2GHz or 1.4GHz CPU Modules.

References

1. Sun SPARC Enterprise T5440 Server Documentation.
