Options 7102797 / 7102800 / 7100792

7041566	7041588	7053841

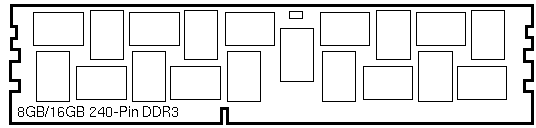

DDR3L-1600/PC3L-12800 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 8GB Registered DIMM 8GB XOption 7102797	DDR3L-1600/PC3L-12800 2-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 16GB XOption 7102800	DDR3L-1333/PC3L-10600 4-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 32GB Registered DIMM 32GB XOption 7100792

Option Notes

1. Option 7100792 with DIMM 7038750 was used in the Sun Server X3-2 and X3-2L.
2. Option 7100792 was changed from DIMM 7038750 to 7053841 after the last order date of the Sun Server X3-2 and X3-2L in February 2014.
3. Option 7100792 with DIMM 7053841 was not sold for the Sun Server X3-2 and X3-2L.

Netra X4270 M3 / Sun Server X3-2L Memory Installation Notes

1. Install memory filler panel 350-1288 in all unused slots.
2. Install DIMMs in the Blue slots first in slots D0, D2, D5, and D7.
3. Then install DIMMs in the White sockets in slots D1, D3, D4, and D6 .
4. Install the highest capacity DIMMs first. Install the highest rank DIMMs first.
5. When Dual Rank and Quad Rank DIMMs are installed in the same channel, install the Quad Rank DIMMs in the slots farthest from the CPU.

References

1. Sun Netra X4270 M3 Server Documentation.
2. Netra Blade X3-2B / Sun Netra X6270 M3 Server Module Documentation.
