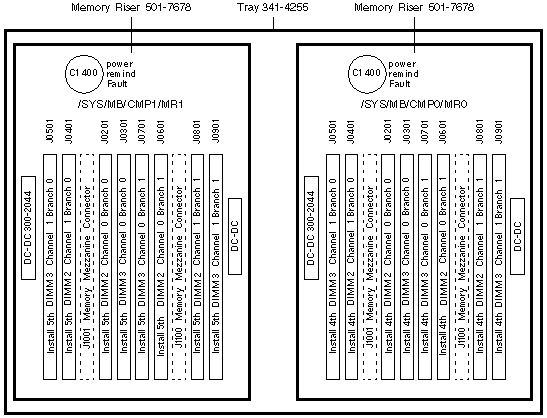

Memory Mezzanine Assembly

Option 5340-A / X5340-A

501-7678	540-7690	F540-7690	594-5812	596-7849
Memory Riser	Mezzanine Assembly without 501-7678 with Air Duct 330-4743	Mezzanine FRU with 501-7678 w/o 330-4743	Mezzanine Option with 501-7678 with Air Duct 330-4743	Mezzanine Option with 501-7678 with Air Duct 330-4743

Netra T5440 Codename: Congo

Memory Notes

1. Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
2. Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
3. The system board requires sixteen FBDIMMs before installing the memory mezzanine.
4. All FBDIMMs must be the same density. Pairs must have the same Sun part number.
5. Install FBDIMM Filler 371-3651 in the unused slots.
6. Memory Riser 501-7678 is only compatible with 1.8V VDD/VDDQ DIMMs.
7. Memory Riser 511-1231 is compatible with 1.5V and 1.8V VDD/VDDQ DIMMs.

References

1. Sun Netra T5440 Server Documentation.

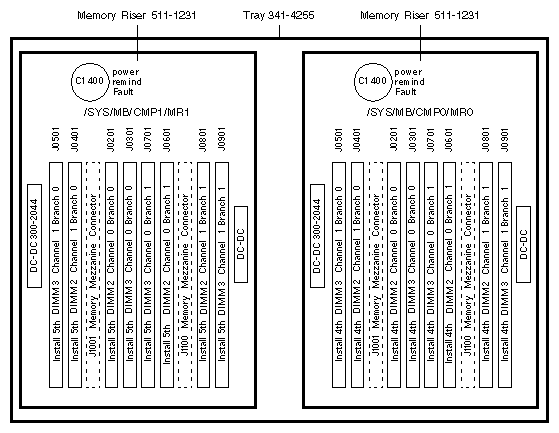

Memory Mezzanine Assembly

Option 3100A / X3100A

511-1231	540-7792	F540-7883	594-5947	596-7958
Memory Riser	Mezzanine Assembly with 511-1231 with Air Duct 330-4743	Mezzanine FRU with 511-1231 w/o 330-4743	Option X3100A with 511-1231 w/o 330-4743	Option 3100A with 511-1231 w/o 330-4743

Netra T5440 Codename: Congo

Memory Notes

1. Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
2. Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
3. The system board requires sixteen FBDIMMs before installing the memory mezzanine.
4. All FBDIMMs must be the same density. Pairs must have the same Sun part number.
5. Install FBDIMM Filler 371-3651 in the unused slots.
6. Memory Riser 501-7678 is only compatible with 1.8V VDD/VDDQ DIMMs.
7. Memory Riser 511-1231 is compatible with 1.5V and 1.8V VDD/VDDQ DIMMs.

References

1. Sun Netra T5440 Server Documentation.
