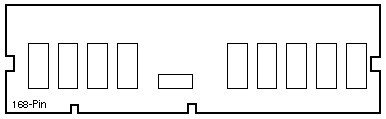

Options 7021 / 7022 / 7023 / 7026

501-2652	501-2653	501-2654
8MB 3.3V ECC 60ns DIMM May 1996 Option 7021	32MB 3.3V ECC 60ns DIMM May 1996 Option 7022	128MB 3.3V ECC 60ns DIMM May 1996 Option 7023

501-5658	501-6901	501-6902
256MB 3.3V ECC 60ns DIMM October 1999 Option 7026	256MB 3.3V ECC 60ns DIMM August 2004 No Option Dataram	256MB 3.3V ECC 60ns DIMM May 2004 No Option Hyundai

Notes

1. Eight DIMMs form a bank.
2. All DIMMs within a bank must be the same size.
3. The first bank of memory can be either Bank 0 or Bank 1.
4. Install one bank on each CPU/Memory board before installing the second bank on any board.
5. Install the largest density banks first, then medium density banks, and finally the smallest density banks.
6. The 256MB DIMMs require OBP >=3.2v23.
   OBP 3.2v26 fixes 2GB memory bank BugID 4323635.
   OBP 3.2v29 fixes mirrored SRAM identification BugID 4427581.
   See Patch 103346.
7. The Solaris 2.5.1 prtdiag command displays incorrect memory capacity. Install Patch 104595-09 or higher.
8. OBP 3.2v26 fixes 2GB memory bank BugID 4323635.

References

1. Sun Enterprise 3000 Server Documentation.
2. Sun Enterprise 4000 Server Documentation.
3. Sun Enterprise 5000 Server Documentation.
4. Sun Enterprise 6000 Server Documentation.
