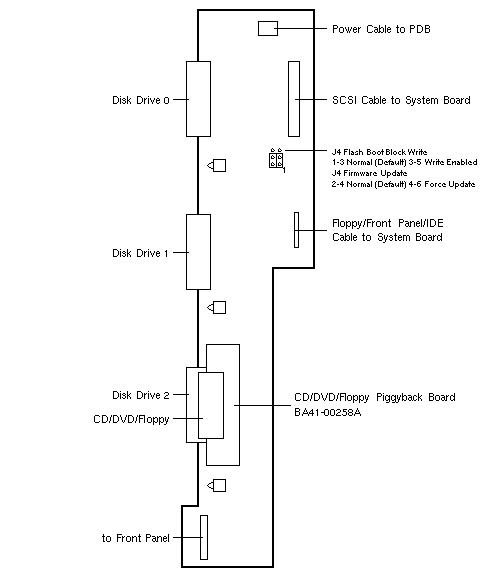

I/O Backplane

<a href="../../Systems/SupportHeaders/IO_SunFireV60x_IO_Backplane.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

370-6183 501-6618 501-6638

Assy A77570-201
PB# A79805-002
MP# A80233-002 Assy A77570-201
PB# A79805-002
MP# A80233-002 501-6618 + Firmware (-01 Rev 50)
370-6183 + Firmware (-01 Rev 51)

Sun Fire V60x Codename: Grizzly

Note:

The hot-swap capability of Backplane serial numbers between ABWE227xxxxx and ABWE236xxxxx may not function correctly with RAID Controller Option 5132. Reboot the system after a drive is hot-swapped in one of the affected Backplanes.

References

Sun Fire V60x and V65x Servers Documentation.
Sun Fire V60x and V65x ReadMe Hot-Swappable Controller Update, 817-7172.
