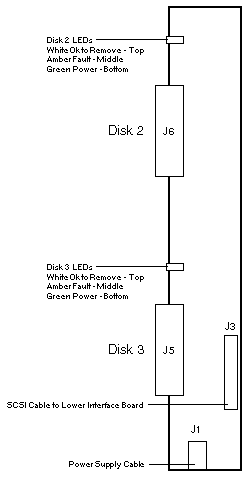

Upper Interface Board

370-5130 F370-5183
Upper Interface Board Interface Board FRU
370-5130 + 370-5183
371-0793 F371-0796
Uppoer Interface Board Interface Board FRU
371-0793 + 371-0796

Sun Fire V240 Codename: Enchilada 2U

Notes

  1. The Disk Drive Amber Fault LED is not routed to the front of the chassis.

References

  1. Sun Fire V210 and V240 Servers Installation Guide, 816-4825.
  2. Sun Fire V210 and V240 Servers Administration Guide, 816-4826.
  3. Sun Fire V210 and V240 Servers Product Notes, 816-4828.
  4. Sun Fire V210 and V240 Servers Parts Replacement Manual, 817-0743.
