Rear I/O Board

511-1420 541-4312 541-4353

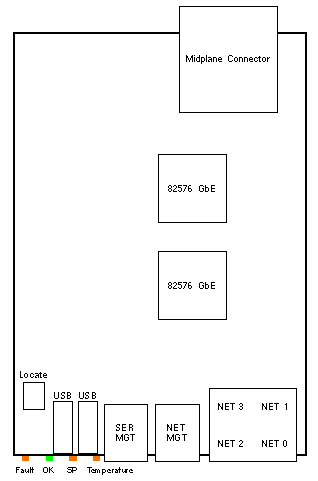

I/O Board

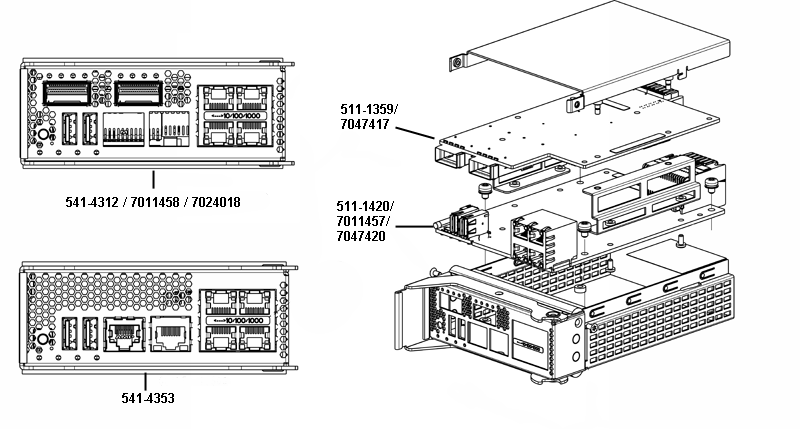

December 2010		 10GbE I/O FRU Assembly
I/O 511-1420 + 10GbE 511-1359
Enclosure 350-1657		 I/O FRU Assembly
I/O 511-1420
Enclosure 350-1659
7011457 7011458 541-4353-04 Rev 51
I/O Board
February 2011		 10GbE I/O FRU Assembly
I/O 7011457 + 10GbE 511-1359
Enclosure 350-1657		 I/O FRU Assembly
I/O 7011457
Enclosure 350-1659
7047420 7024018
I/O Board
May 2012		 10GbE I/O FRU Assembly
I/O 7047420 + 10GbE 7047417
Enclosure 350-1657

Notes

  1. The enclosure cover is fastened with two T-8 Torx screws.
  2. The I/O Board and 10GbE QSFP I/O Board are not field replaceable.

References

  1. SPARC T3-4 Server Product Notes.
  2. SPARC T3-4 Server Service Manual.
