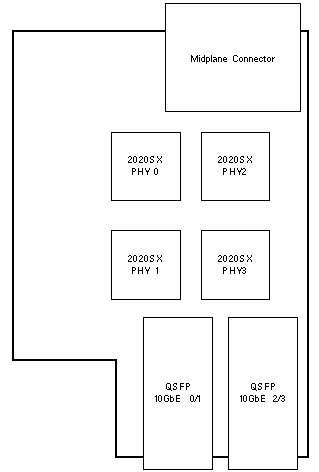

10GbE QSFP Rear I/O Board

511-1359 541-4312 7011458
10GbE I/O Board

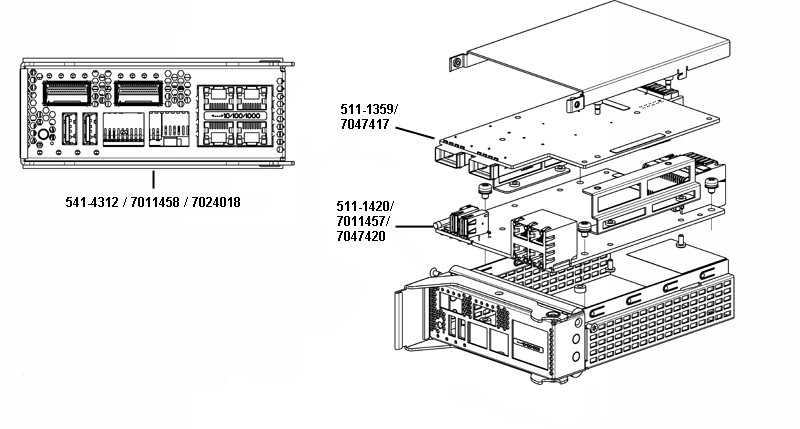

January 2011		 10GbE I/O FRU Assembly
I/O 511-1420 + 10GbE 511-1359
Enclosure 350-1657
January 2011		 10GbE I/O FRU Assembly
I/O 7011457 + 10GbE 511-1359
Enclosure 350-1657
February 2011
7047417 7024018
10GbE I/O Board
May 2012		 10GbE I/O FRU Assembly
I/O 7047420 + 10GbE 7047417
Enclosure 350-1657

Notes

  1. The enclosure cover is fastened with two T-8 Torx screws.
  2. The I/O Board and 10GbE QSFP I/O Board are not field replaceable.

References

  1. SPARC T3-4 Server Documentation.
  2. SPARC T4-4 Server Documentation.
