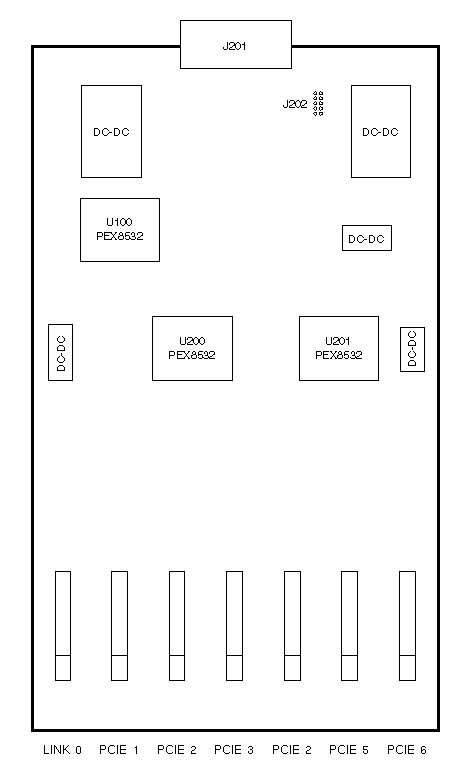

PCI Express I/O Assembly

Notes

1. Install PCI-X/PCI Express Carrier 541-0319 in all slots.
2. Install PCI Express Blank 541-0530 in all unused PCI Express carriers.
3. Install I/O Boat filler 541-1367 in an unused I/O Boat slot.
4. The top of the front panel is tapped for an M2 x 0.3mm Cap Screw.
5. The Cap Screw is used as a key for slots 0 through 6.
6. Use an M1.5 Hex wrench to change the position of the Cap Screw.
