6-Slot PCI Express/XAUI Mezzanine

371-3646	540-7689
PCB 411769900006	371-3646 + Tray 341-4240

Netra X4450

Netra T5440

Netra T5440 Codename: Congo Netra X4450 Codename: Argo

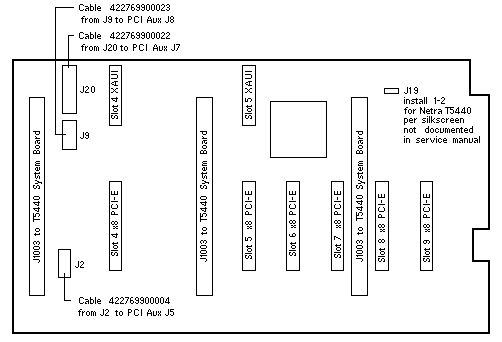

Netra T5440 Notes

1. PCI Express Slots 4 , 5, 6, 7, 8, and 9 are x8 mechanical and x8 electrical.
2. An XAUI card installed in Slot 4 disables system board ethernet port 1.
3. An XAUI card installed in Slot 5 disables system board ethernet port 0.
4. Cable Kit 530-3999 includes the cables to J5, J6, J7, J8, and J9.

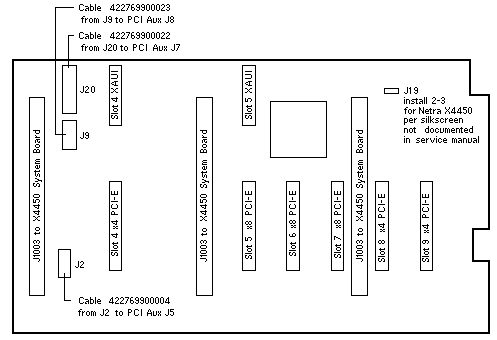

Netra X4450 Notes

1. XAUI Slots are not used.
2. PCI Express Slots 4, 8, and 9 are x8 mechanical and x4 electrical.
3. The Mezzanine is not labeled with the FRU assembly part number.
4. Cable Kit 530-3999 includes the cables to J2, J9, and J20.

References

1. Sun Netra T5440 Server Documentation.
2. Sun Netra X4450 Server Documentation.
