PCI Express Riser
| 371-4748 |
371-4749 |
542-0269 |

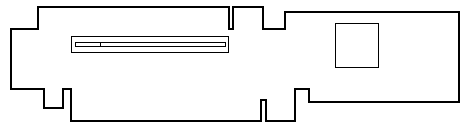

PCI Express Riser-0
Assembly 411778800024
Riser + Bracket |

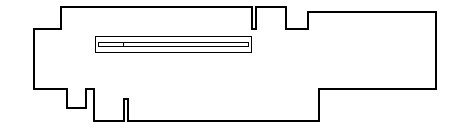

PCI Express Riser-1/2
Assembly 411778800023
Riser + Bracket |
Riser FRU
371-4748 + 371-4749 |
| 7023681 |
7023540 |
7023544 |
PCI Express Riser-0
Assembly 411778800024
Riser + Bracket |
PCI Express Riser-1/2
Assembly 411778800023
Riser + Bracket |
Riser FRU
371-4748 + 371-4749 |
| 7062187 |
7062186 |
7062189 |
PCI Express Riser-0
Assembly 5411C2130005
Riser + Bracket |
PCI Express Riser-1/2
Assembly 541177880004
Riser + Bracket |
Riser FRU
7062187 + 7062186 |
| Riser-0 371-4748, 7023681 and 7062187 |
 |
|
| Riser-1 & 2 371-4749, 7023540 and 7062186 |
 |
|
Netra X4270 Codename: Aurigi |
Netra X4270 Notes
- One x8 form-factor PCI Express Riser labeled Riser 0 is installed in Slot 0.
- One x8 form-factor PCI Express Riser labeled Riser 1&2 is installed in
Slot 1.
- One x8 form-factor PCI Express Riser labeled Riser 1&2 is installed in
Slot 2.
- Assembly 542-0269 includes one 371-4748 and two 371-4749.
- Assembly 7023545 includes one 7023681 and two 7023540.
- Assembly 7062189 includes one 7062187 and two 7062186.
- The Risers are not labeled with the FRU part number.
References
 Sun Netra X4270 Server Documentation.
|
