PCI Express 3.0 Riser

<a href="../../Systems/SupportHeaders/IO_Netra_X3_2_PCI_Expr_Riser.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7017385 7017384

PCI Express 3.0 Riser PCI Express 3.0 Riser-1 Assembly
Riser 7017385 + Bracket 7043906

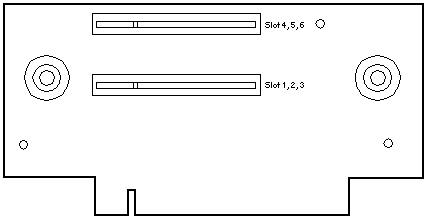

x8 Slot 1 / x8 Slot 4

7017385 7020312

PCI Express 3.0 Riser PCI Express 3.0 Riser-2 Assembly
Riser 7017385 + Bracket 7043907
x8 Slot 2 / x8 Slot 5

7017385 7020313

PCI Express 3.0 Riser PCI Express 3.0 Riser-3 Assembly
Riser 7017385 + Bracket 7043908
x8 Slot 3 / x8 Slot 6

Notes

Riser 1, Slot 1 is reserved for the Sun Storage 6Gb SAS PCIe RAID HBA..
