DVD Tray
| 371-4940 |
371-4943 |
542-0391 |
Fan Control Board
R0350-G0007-02 |
LED Board
R0350-G0008-02 |
DVD Tray FRU Assembly
Assembly R0350-F0017-01
371-4940 + 371-4943
Tray Kit R0350-F0005
Cable R0350-C0004-01 |
| 371-4940 |
371-4943 |
7068370 |
Fan Control Board
R0350-G0007-02 |
LED Board
R0350-G0008-02 |
DVD Tray FRU Assembly
Assembly R0350-F0017-01
371-4940 + 371-4943
Tray Kit R0350-F0005
Cable R0350-C0004-01 |
| 371-4940 |
7070222 |
7068370 |
Fan Control Board
R0350-G0007-02 |
LED Board
R0350-G0008-02 |
DVD Tray FRU Assembly
Assembly R0350-F0017-01
371-4940 + 7070222
Tray Kit 7069529
Cable 7069526 |
Netra SPARC T3-1 Codename: Madrid
Netra SPARC T4-1 Codename: MadridT4-1 |
Notes
- The DVD Tray FRU includes cable R0350-C0004-01 or 7069526.
- The PDB FRU includes cables R0350-C0008-01 and R0350-C0009-01 (x2).

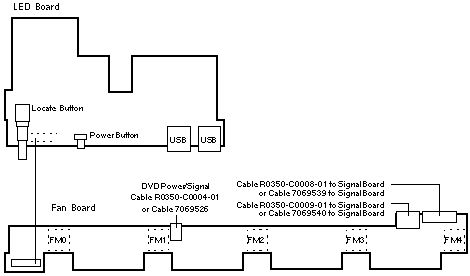

- Cable R0350-C0004-01 connects the Fan Board to the DVD and System Board.
- Cable 7069526 connects the Fan Board to the DVD and System Board.
- Cable R0350-C0008-01 or 7069539 connects the Signal Board to the Fan Board.
- Cable R0350-C0009-01 or 7069540 connects the Signal Board to the Fan Board.
- The cables are not assigned Sun/Oracle part numbers.
References
 Netra SPARC T3-1 Server Documentation.
- Netra SPARC T4-1 Server Documentation.
|
