| CODE |
PART # |
DESCRIPTION |
1
1
NS
NS |
599-3410
599-3803
300-1701 [F]
341-0704 |
I/O Expansion Unit Assembly
I/O Expansion Unit Assembly
A195 Power Supply
Front Bezel |
1
NS
2
3
4
5
NS
6
1 |
541-2555 [F]
180-2118
180-2162
341-0727
501-6937
501-7053
530-3820
530-3821
541-0315 |

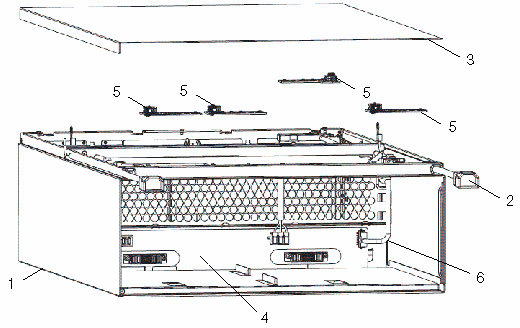

Chassis Assembly/FRU
Front AC Power Cable
Rear AC Power Cable
Top Cover
Centerplane
LED Board
Front LED Cable
Rear LED Cable
Chassis |
1
NS
2
3
4
5
NS
6
1 |
541-2998 [F]
180-2118
180-2162
341-0727
501-6937
501-7053
530-3820
530-3821
541-0315 |
Chassis Assembly/FRU
Front AC Power Cable
Rear AC Power Cable
Top Cover
Centerplane
LED Board
Front LED Cable
Rear LED Cable
Chassis |
| NS |
501-7040 [F] |
Fibre Link Card (Options SENX8LK2Z / SENX8LK2P w/ 2× 10M Cables)
Fibre Link Card (Options SENX8LK3Z / SENX8LK3P w/ 2× 25M Cables) |
| NS |
501-7041 [F] |
Copper Link Card (Options SELX8LK1Z / SELX8LK1P w/ 2× 4M Cables) |
| NS |
537-1070 [F] |
Fibre Link Cable, 25M, SENX8FC2Z / SENX8FC2P |
| NS |
537-1077 [F] |
Copper Link Cable, 3M (discontinued) |
| NS |
537-1100 [F] |
Fibre Link Cable, 10M, SENX8FC1Z / SENX8FC1P |
| 7 |
541-0316 [F] |

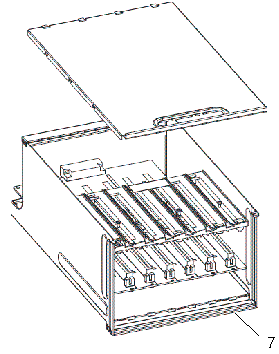

PCI-X I/O Boat |
| NS |
541-0319 [F] |
PCI-X/PCI Express Carrier |
| 7 |
541-0507 [F] |
PCI Express I/O Boat |
NS
|
541-0530
330-4016 |
PCI Express Blank Assembly
PCI Express Blank |
NS
|
541-0531
330-4015 |
PCI-X Blank Assembly
PCI-X Blank |
| NS |
541-1367 |
I/O Boat Filler |
| NS |
560-2808 |
Rackmount Kit |
| NS |
560-2869 |
M8000 Rackmount Kit, Option SENX8RK1Z |
