External I/O Expansion Unit (post 2013)
without EU Directive 2002/95/EC exemptions 7(c)-III and 11(b) that expire 1
January 2013
| Servers: |
SPARC Enterprise T5120, T5140, T5220, T5240, T5440
SPARC Enterprise M4000, M5000, M8000, M9000 |
| SENY8BE2Z |
| 1 PCI Express I/O Boat |
| Table Legend |
|
[F] = Field Replaceable Unit (FRU) |
| CODE |
PART # |
DESCRIPTION |
1
NS
NS |
7057575
300-1701 [F]
341-0704 |
I/O Expansion Unit Assembly
A195 Power Supply
Front Bezel |

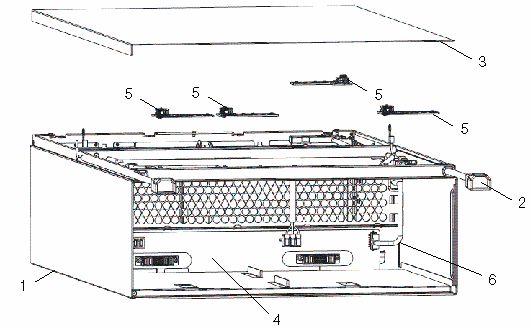

1
NS
2
3
4
5
NS
6
1 |
7056246 [F]
180-2118
180-2119
341-0727
7056245
501-7053
530-3820
530-3821
541-0315 |
Chassis Assembly/FRU
Front AC Power Cable
Rear AC Power Cable
Top Cover
Centerplane
LED Board
Front LED Cable
Rear LED Cable
Chassis |
| NS |
7056242 [F] |
Fibre Link Card |
| NS |
7056243 [F] |
Copper Link Card |
| NS |
530-3965 [F] |
Copper Link Cable, 4M |
| NS |
7060403 [F] |
Copper Link Cable, 4M (replaces 530-3965) |
| NS |
537-1070 [F] |
Fibre Link Cable, 25M, SENX8FC2Z / SENX8FC2P |
| NS |
537-1100 [F] |
Fibre Link Cable, 10M, SENX8FC1Z / SENX8FC1P |
| NS |
541-0319 [F] |
PCI-X/PCI Express Carrier |

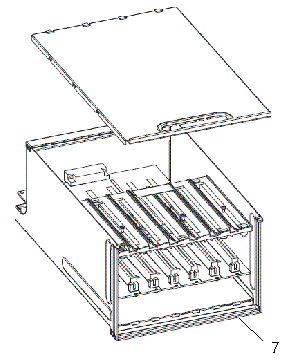

| 7 |
7050936 [F] |
PCI Express I/O Boat |
NS
|
541-0530
330-4016 |
PCI Express Blank Assembly
PCI Express Blank |
| NS |
541-1367 |
I/O Boat Filler |
| NS |
560-2808 |
Rackmount Kit |
| NS |
560-2869 |
M8000 Rackmount Kit, Option SENX8RK1Z |
References
 External I/O Expansion Unit Servers Documentation.
All platforms:
-
Just The Facts.
|
 | | | |
